| SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS LED LIGHT BAR! |
|
|
INFORMATION FOR THIS DESIGNER SERIES LED LIGHT BAR BELOW.
|
|
|

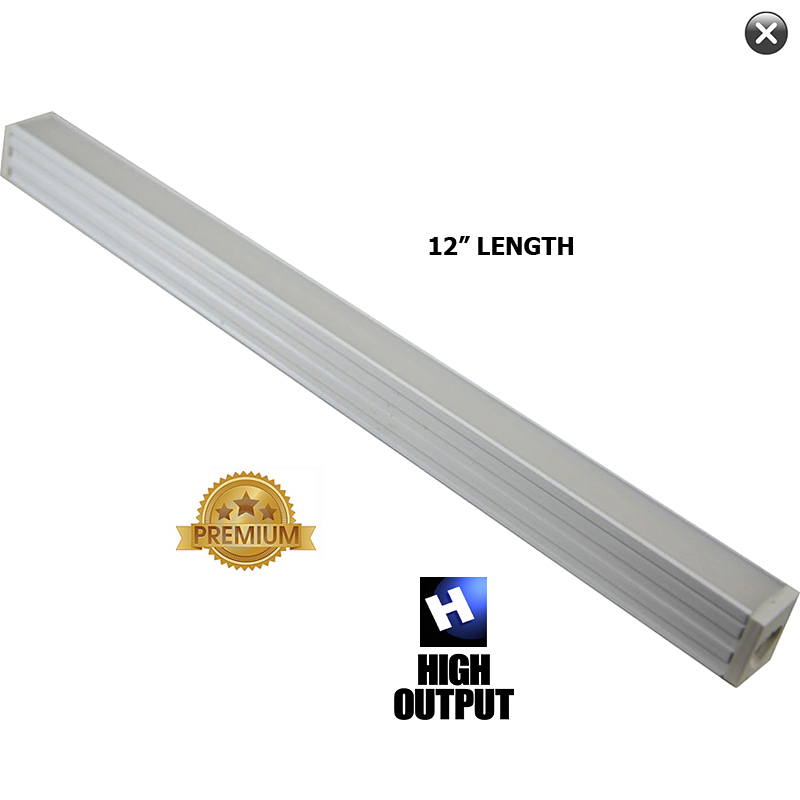

12″ Length 120 Volt Line Voltage 4.3 Watt Premium Designer’s Choice Linear Series High Output LED Undercabinet Light Bar with up to 96* CRI (*2700K Model)! This 12″ LED light bar is as bright as a 60 Watt Halogen light source while consuming at least 85% less electricity, and is fully dimmable down to 5% light output! These Light Bars can be linked together on a run of up to Forty (40) Linear Feet of varying lengths on one Power Cord, or up to 24 feet if you use only the 12″ 4.3W Accent light bars (2 Amp Max load per power cord)! These sleek looking LED Bars are constructed out of high quality extruded aluminum with a durable White powdercoated finish with a full architectural-grade frosted diffuser that optimizes light, reduces glare and conceals the LED’s from view while delivering even and consistent light. There are no “hot spots” with these LED bars!
|
NSF (NATIONAL SANITATION FOUNDATION) APPROVED:
NSF is the nationally recognized certification for all products that are approved for use in sensitive areas such as food service, medical facilities. To be NSF-approved, a product must undergo extensive testing and material analysis to ensure that it is completely safe for these important fields!
USES:
Under Cabinet Lighting, Soffit Lighting, Table Lighting, Ad Lighting, Navigation Signal, Museum Gallery, Casino, Bar, Mall, Exhibition, Meeting Room, Shop Windows, Show Cabinet, Hotel and Restaurant Decorations, Home Interior decoration, Show Rooms, Bio-medical and medical applications, Retail sales display, Elevator lighting, Cruise ship and yacht lighting, etc.
INCLUDED ACCESSORIES:

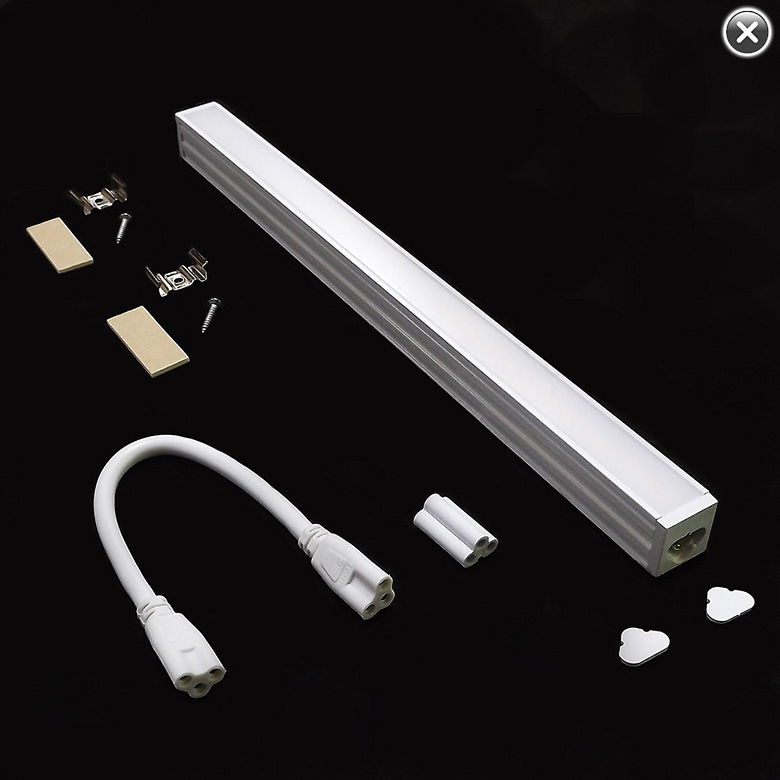

One (1) 4″ Length Extension Joiner, which allows you to link LED Bars together with up to a 4″ gap in-between each each LED Bar, great for linking LED Bars together around a corner or a bend; One (1) bar-to-bar Joiner, which allows you to link LED Bars together on a straight run with them butted up against each other; One (1) set of Quick-Clip mounting brackets and screws; and One (1) set of double-sided tape strip which, if desired, will allow you to simply “stick” the LED Bars to the surface, eliminating the need to drill holes!
|
OPTIONAL / REQUIRED ACCESSORIES:
48″ Length Power Cord or 70″ Length Hardwire Cord (either or is required and not included) – you only need one (1) power cord to power up to 24-40 linear feet (in the same lengths or varying lengths, 2 Amp Max) of these LED Bars on one run; 12″ or 40″ Extension Joiner which allows you to link LED Bars together with up to a 12″ or 40″ Gap (4″ Extension Joiner is included); Junction Box (unpainted); Lightbar Connection Box; and Lightbar Distribution Box. See below to see and/or order accessories for these LED Light Bars!
|
|
|
|
BELOW PHOTOS SHOW LED LIGHT BARS IN ACTION! CLICK ANY PHOTO TO ENLARGE!
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS PREMIUM DESIGNER SERIES 120V LED LINKABLE LIGHT BAR |
|
 |
LENGTH: 12″ Length
|
|
|
INPUT VOLTAGE: 120 Volt AC Line Voltage. No Transformer Required!
|
|
|
POWER CONSUMPTION (PER 12″ LIGHT BAR): 9.5 Watts for the 2700K Model, 9.7 Watts for the 3500K Model, 10.0 Watts for the 5000K Model..
|
|
|
CONSTRUCTION: Constructed out of high quality Extruded Aluminum with a durable White powdercoated finish with a full architectural-grade frosted diffuser that optimizes light, reduces glare and conceals the LED’s from view while delivering even and consistent light. There are no “hot spots” with these LED bars!
|
|
|
BEAM SPREAD: 100° Wide Angle ensures even light output
|
|
|
LED RATED LIFE: 50,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 17 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for nearly 6 years!!!
|
|
|
DIMMING: Fully dimmable down to 5% light output!
|
|
|
CRI: >96 for the 2700K option (the higest you can get!), >85 for the 3500K option, >86 for the 5000k option. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
ACTUAL LUMENS (PER 12″ BAR): 568 Lumens in 2700K Warm White, 620 Lumens in 3500K Neutral White, 737 Lumens in 5000K Cool White (rated at the source).
|
|
|
INSTALLATION & MOUNTING: This LED Undercabinet Light Bar comes included with all the mounting hardware needed to mount it to almost any flat surface. Requires one Power Cord or Hardwire Cord (not included). One Power or Hardwire Cord can power up to 24-40 feet of these LED Light Bars on a single run, if using varying lengths. Can power up to 24 feet of these LED Light Bars on a single run if you run all of these 9.7W 12″ LED bars on a single run (2 Amp Max per power cord)! You can use your own junction box, and we also offer optionally a customized Juntion Box designed for these LED Light Bars that you can order unpainted to be painted by the customer. You can also order the Junction Box painted in White. If you want to use this Junction Box and need it painted to a custom finish, call us and we will be able to meet your specific needs!
|
|
|
CERTIFICATIONS (LISTINGS): ETL & cETL Listed, DLC (Designlights Consortium) Approved, California Title 24 Compliant, NSF (National Sanitation Foundation) Approved, CE and RoHS Certified, FCC, Lighting Facts.
|
|
|
|
