12VDC / 24VDC Hi-Capacity In-Line LED Lighting Dimmer (30 AMP)

$49.99

SKU: TLDN2

In Stock

INFO AND SPECS FOR THIS LED PWM DIMMER SHOWN BELOW.

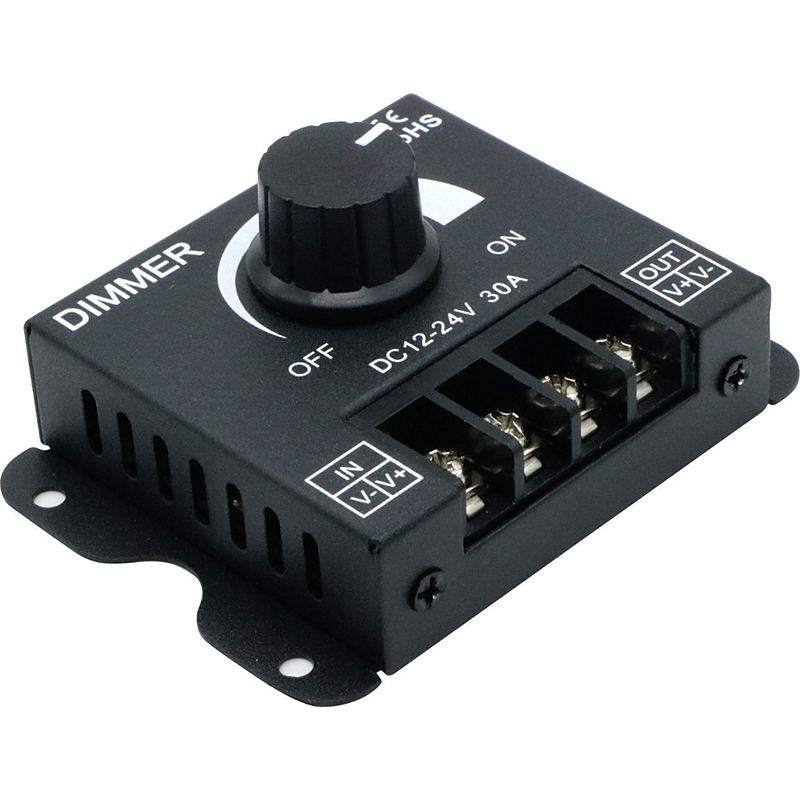

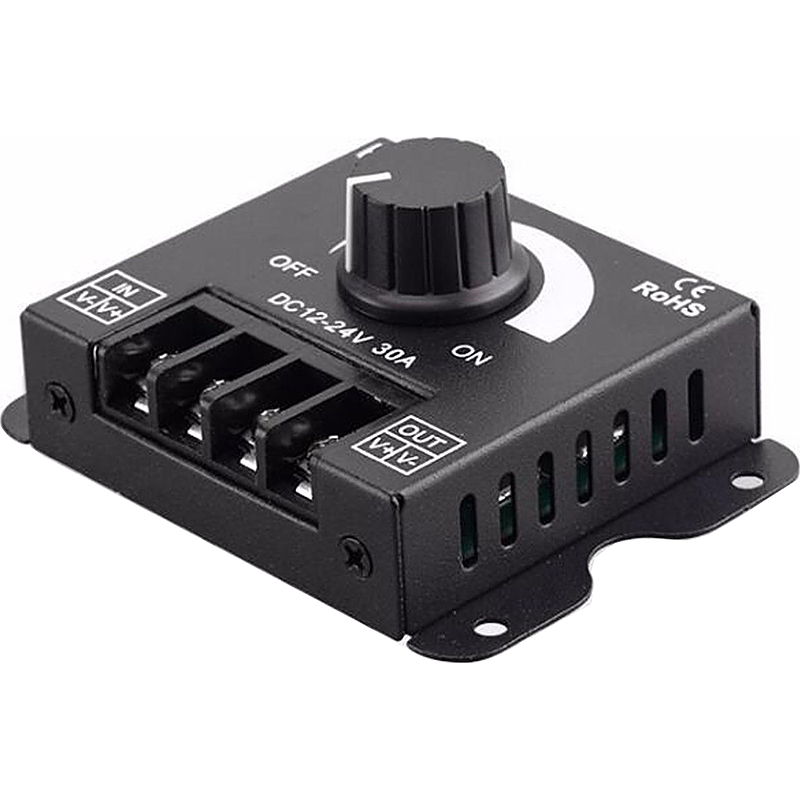

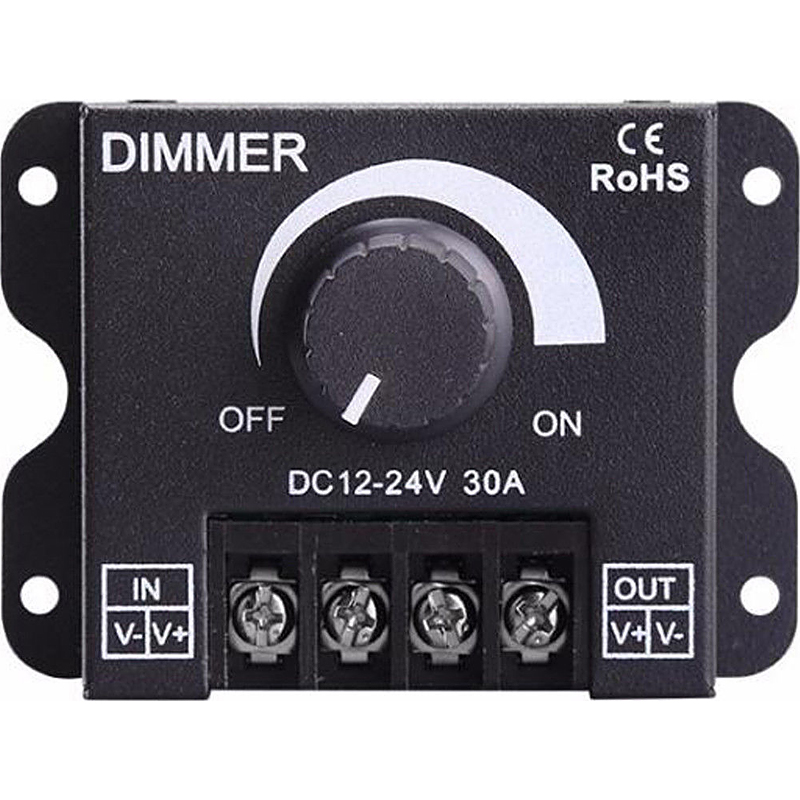

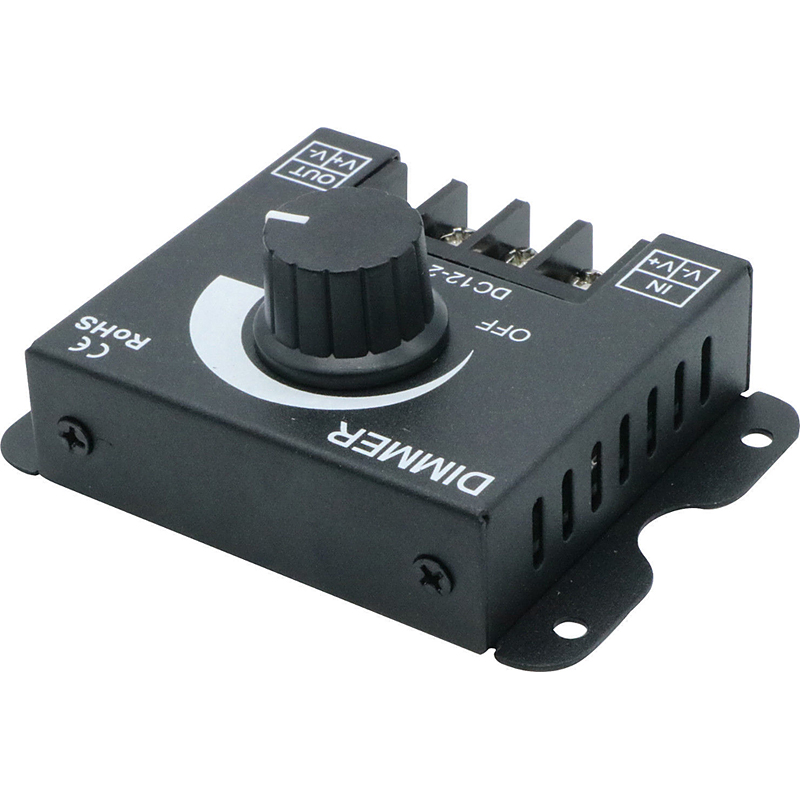

	DIM UP TO 492 FEET OF SINGLE COLOR LED STRIP LIGHT WITH THIS DIMMER!* SUPERCHIP EXCLUSIVE HI-CAPACITY IN-LINE DIMMER! In-Line High Capacity PWM LED Strip Light Dimmer for Single Color LED Lighting. Not for use with RGB LED tape lighting or 120V LED lighting. Connects the end of our Low Voltage Standard (12V) or SuperChip™ (24V) Single Color LED Tape Light to a Low Voltage DC Transformer (will NOT work with AC transformers). Dims from 100%-0% (with on/off functionality) with its easy-to-use rotary knob attached to the dimmer box. Connects to the secondary side of your LED Low Voltage DC Driver (Transformer).

ADDITIONAL INFORMATION FOR THIS LED PWM DIMMER BELOW

	MAX LED STRIP (TAPE) LIGHT LENGTHS: This LED PWM Dimmer can handle the max lengths of Single Color LED Strip Light as shown below. Please keep in mind that longer runs will require Signal Amplifier(s). 1.5 Watt Standard (12V) Single Color LED Tape Light: 246 feet (360W Max) 1.5 Watt SuperChip™ (24V) Single Color LED Tape Light: 492 feet (720W Max) 2.2 Watt Standard (12V) Single Color LED Tape Light: 164 feet (360W Max) 2.2 Watt SuperChip™ (24V) Single Color LED Tape Light: 328 feet (720W Max) 3.0 Watt Standard (12V) Single Color LED Tape Light: 123 feet (360W Max) 3.0 Watt SuperChip™ (24V) Single Color LED Tape Light: 246 feet (720W Max) 4.4 Watt Standard (12V) Single Color LED Tape Light: 82 feet (360W Max) 4.4 Watt SuperChip™ (24V) Single Color LED Tape Light: 164 feet (720W Max) 6.0 Watt SuperChip™ (24V) Single Color LED Tape Light: 123 feet (720W Max) 8.8 Watt Standard (12V) Single Color LED Tape Light: 41 feet (360W Max) 8.8 Watt SuperChip™ (24V) Single Color LED Tape Light: 82 feet (720W Max)

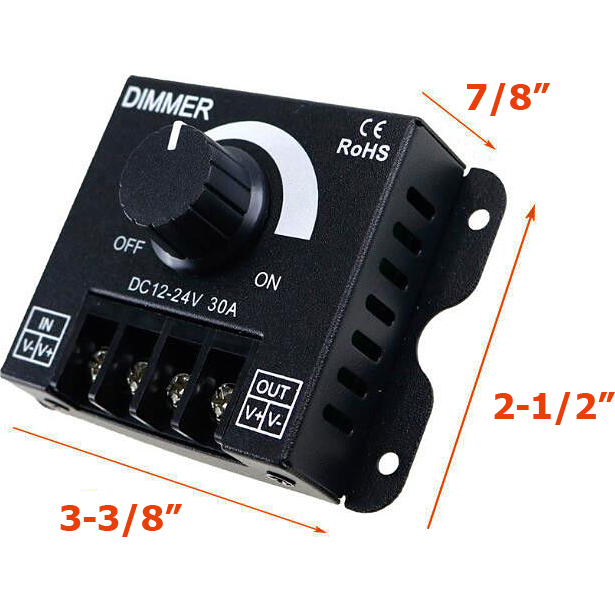

	DIMENSIONS: 3-3/8" Length x 2-1/2" Width x 7/8" Depth (Thick)

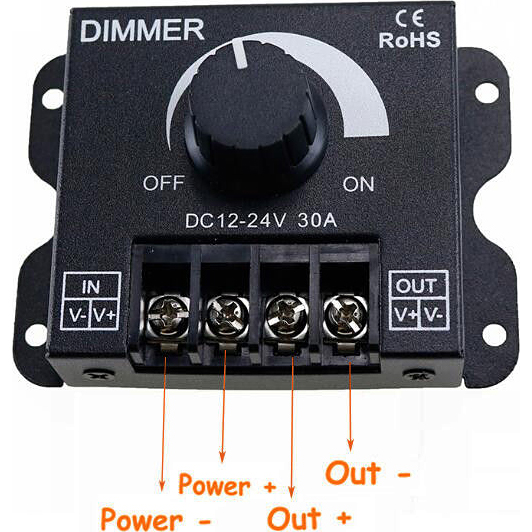

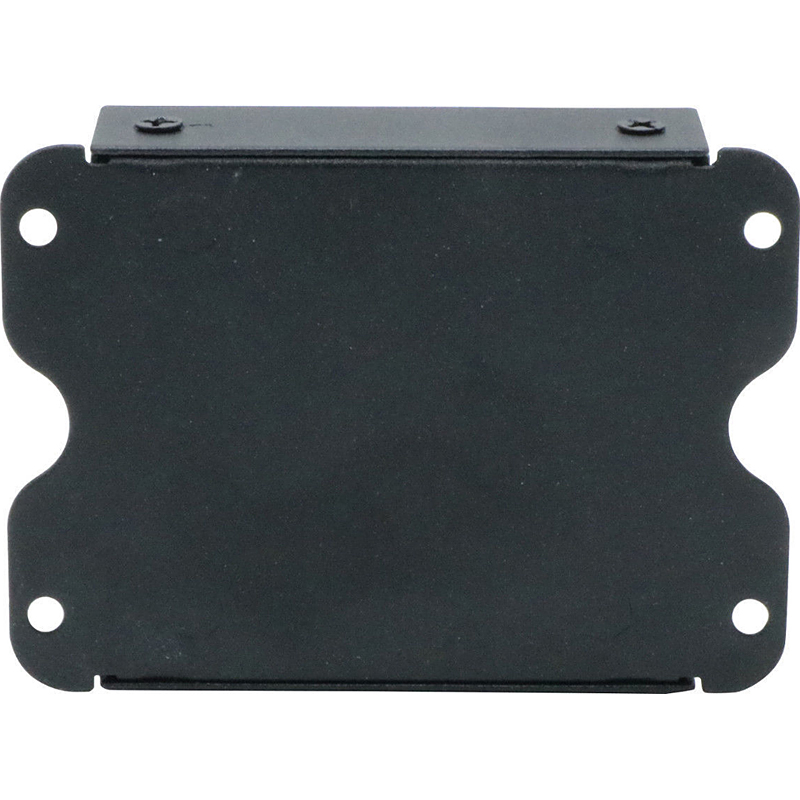

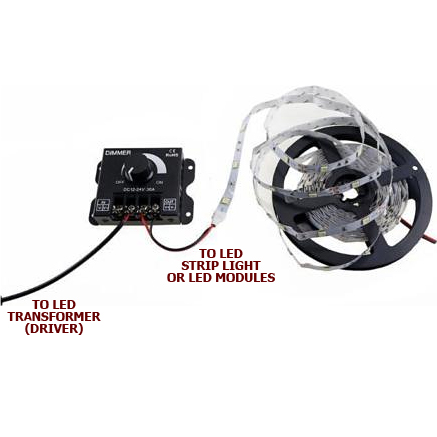

	INSTALLATION: Simply connect to the 12V or 24V (secondary) side of your LED power supply (transformer), then connect to the low voltage LED Lighting you wish to dim. Comes with mounting holes on the back of the dimmer, allowing for easy surface mounting on most surfaces.

	WARRANTY: 1 year limited manufacturer’s warranty.
