150 To 1200 Watt Pro Series Landscape Lighting Transformers

$219.99

SKU: TPS150-1200W

In Stock

Quantity:
x

Product Description

These are the transformers the pros use!
Multi-Tap Transformer with taps of 12V, 13V, 14V & 15V – OR – 12V, 14V, 15V, 16V, 18V, 20V & 22V for full flexibility!

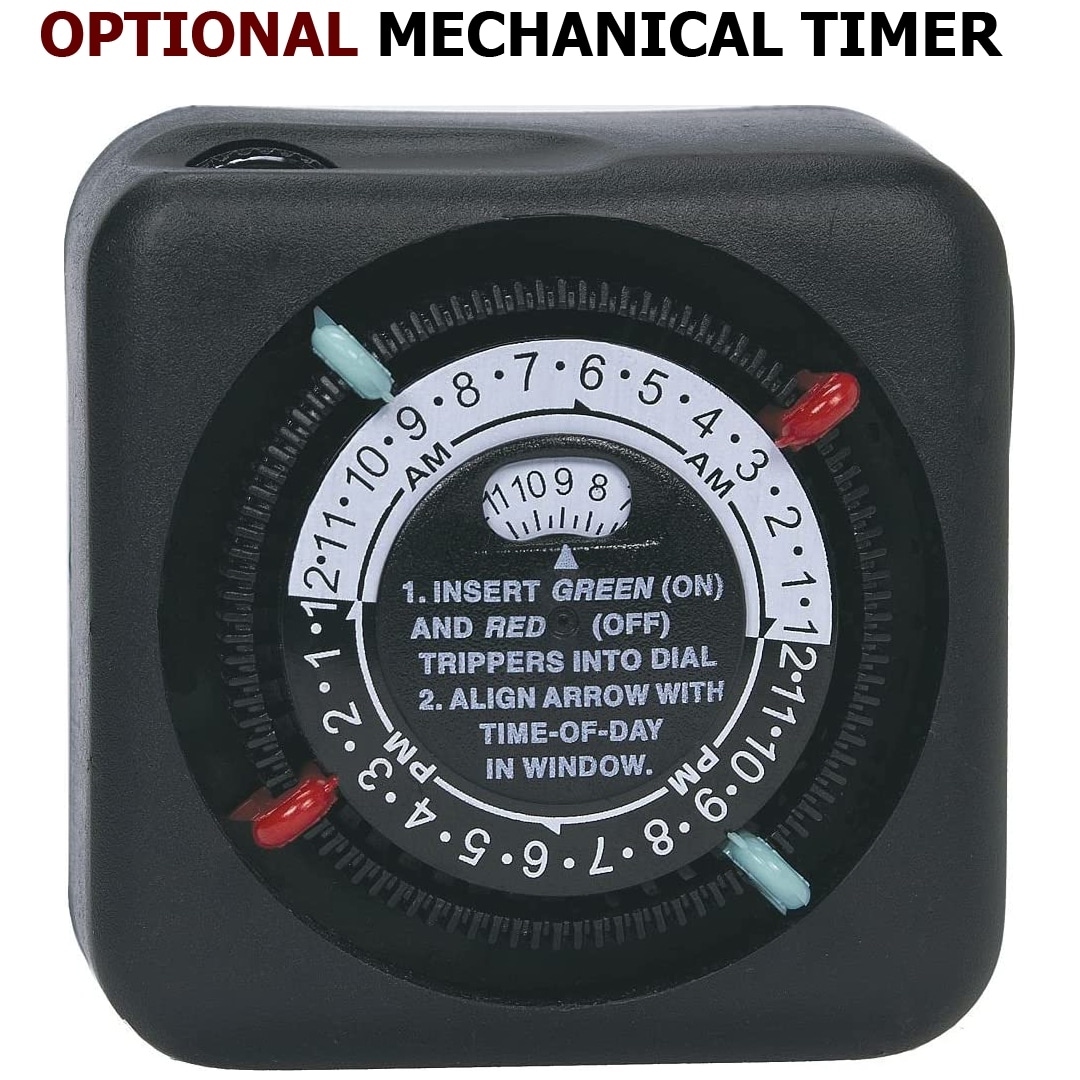

Optional premium Timer and  / or Photocell available.
Available in Black Powder Coated Steel or Stainless Steel!

150, 300, 600, 900 or 1200 Watt 120VAC to 12VAC~15VAC or 12VAC~22VAC Pro Series Commercial Grade Dimmable Magnetic Step-Down Landscape Lighting Transformers. (Drivers). Designed for many years of service and comes with a Five (5) Year Manufacturer’s Warranty! Full flexibility and rugged construction make these the first choice for professionals! Dimmable with any low-voltage magnetic dimmer from the primary side (only dimmable if the timer and / or photocell are NOT used). Includes a 6 foot plug-in cord which can be hard-wired to a switch by simply cutting off the plug-in end!

  • TRANSFORMER TYPE: Class 2 Magnetic Dimmable* (*when timer or photocell are not used).
  • INPUT VOLTAGE: 120 Volts AC (standard “line” voltage). Can be used with 110VAC to 130VAC input voltages.

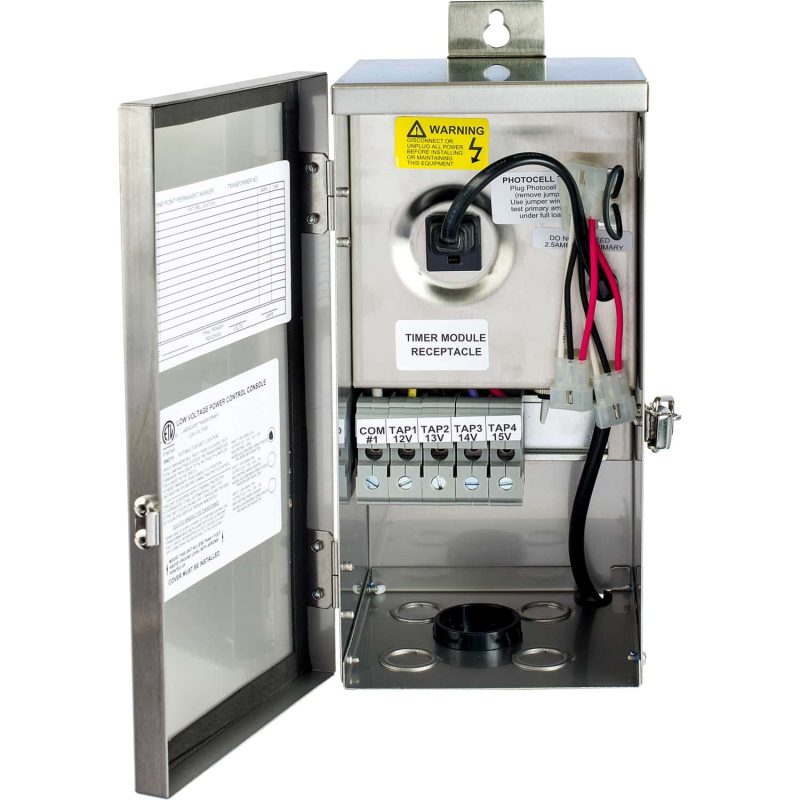

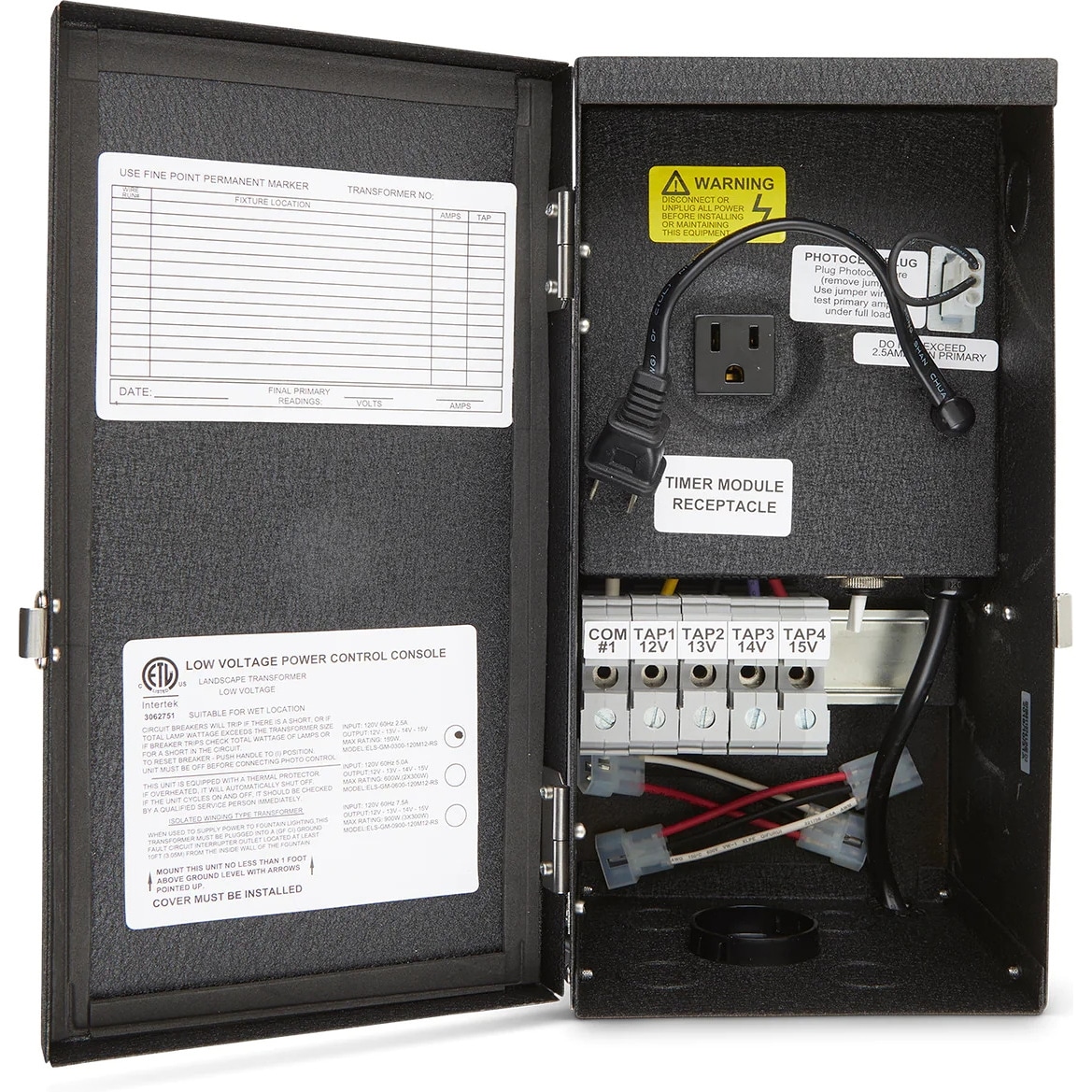

  • OUTPUT VOLTAGES (12VAC~15VAC Option): 12V, 13V, 14V or 15V Multi-Tap.

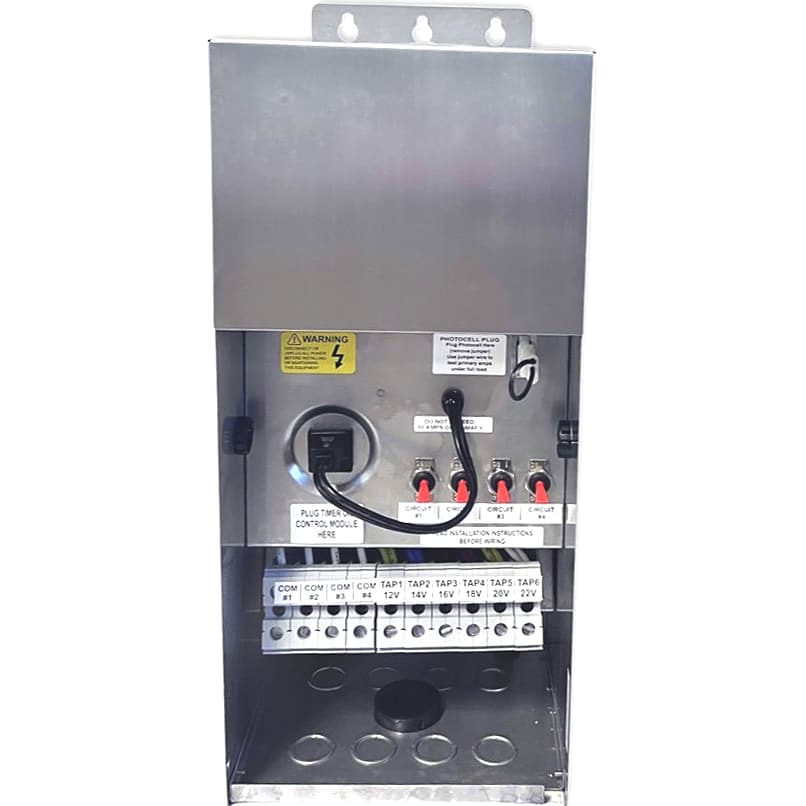

  • OUTPUT VOLTAGES (12VAC~22VAC Option): 12V, 14V, 15V, 16V, 18V, 20V or 22V Multi-Tap.
  • MAXIMUM LOAD: Your choice of 150W, 300W, 600W, 900W 0r 1200W.

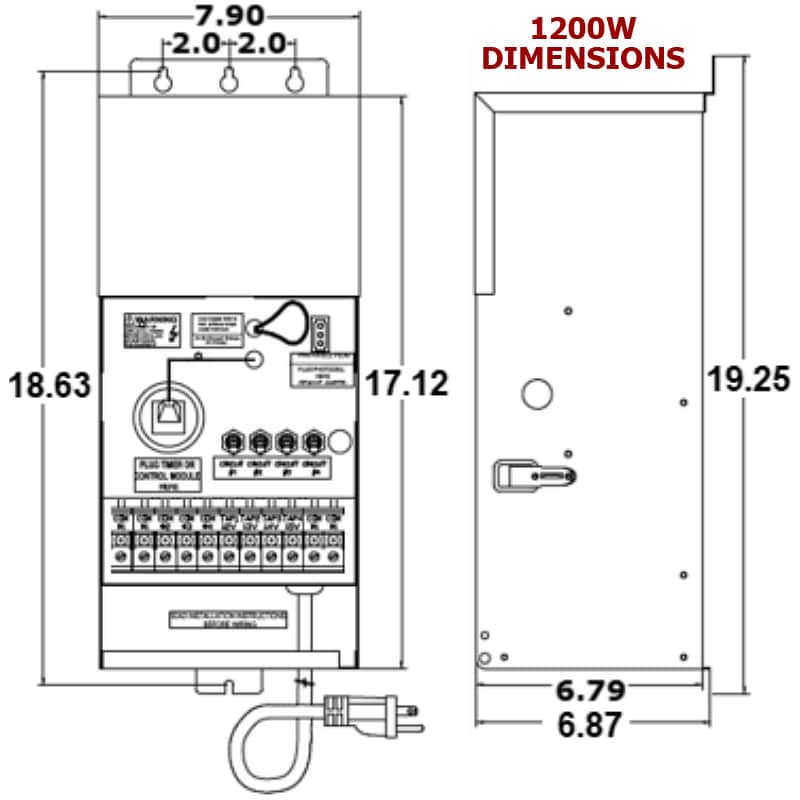

  • DIMENSIONS: See photos above or specification sheets in Spec Sheets tab.

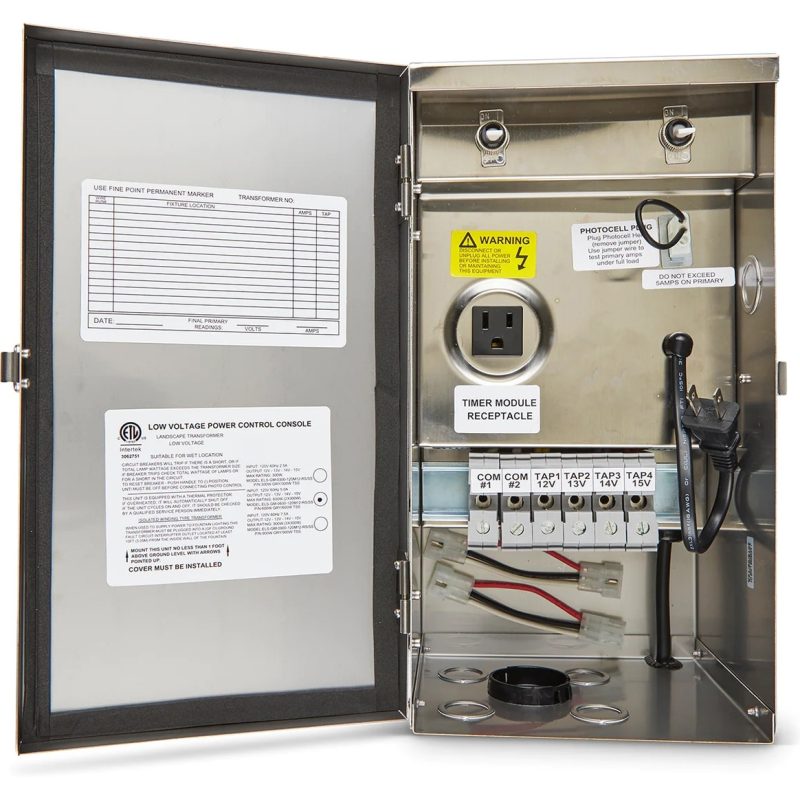

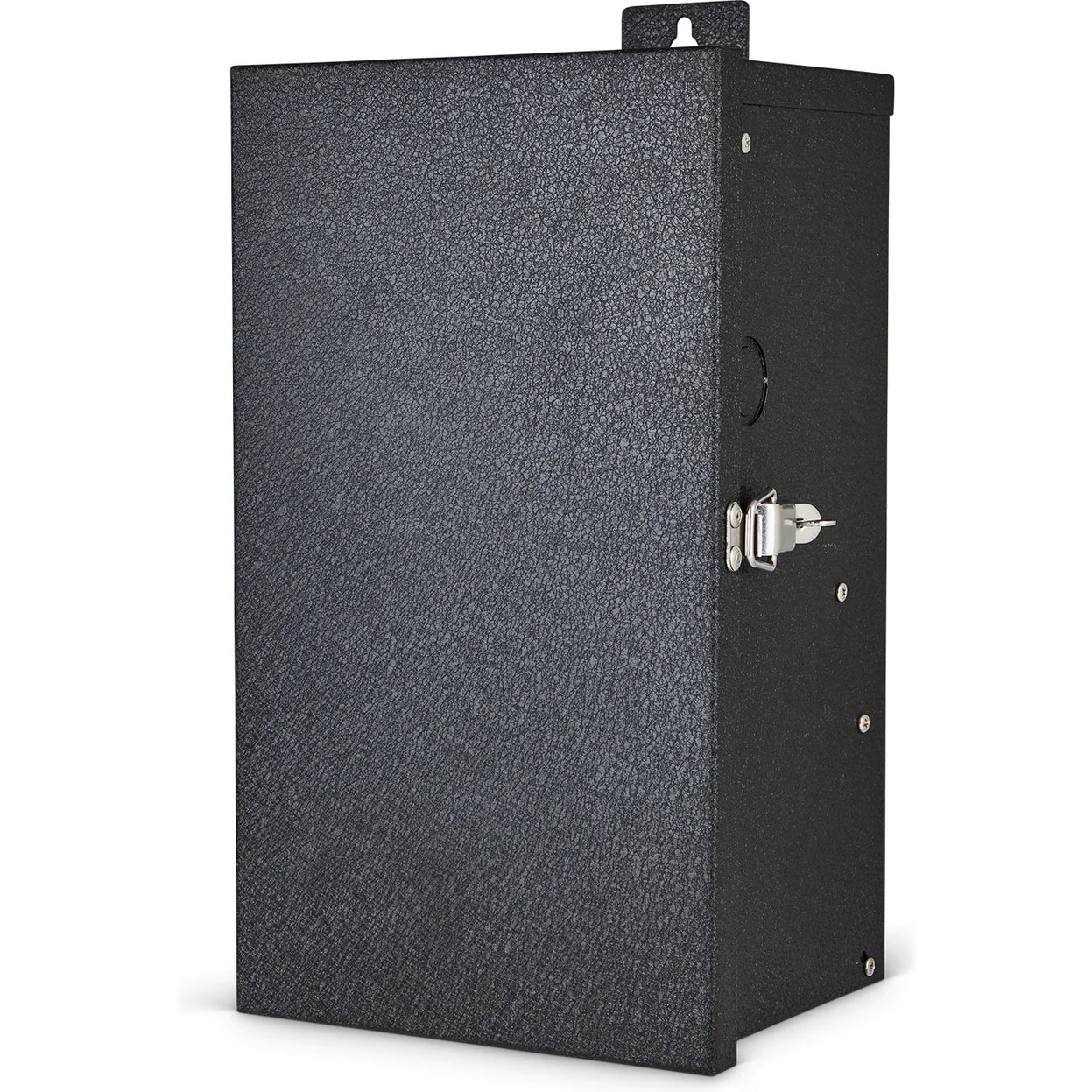

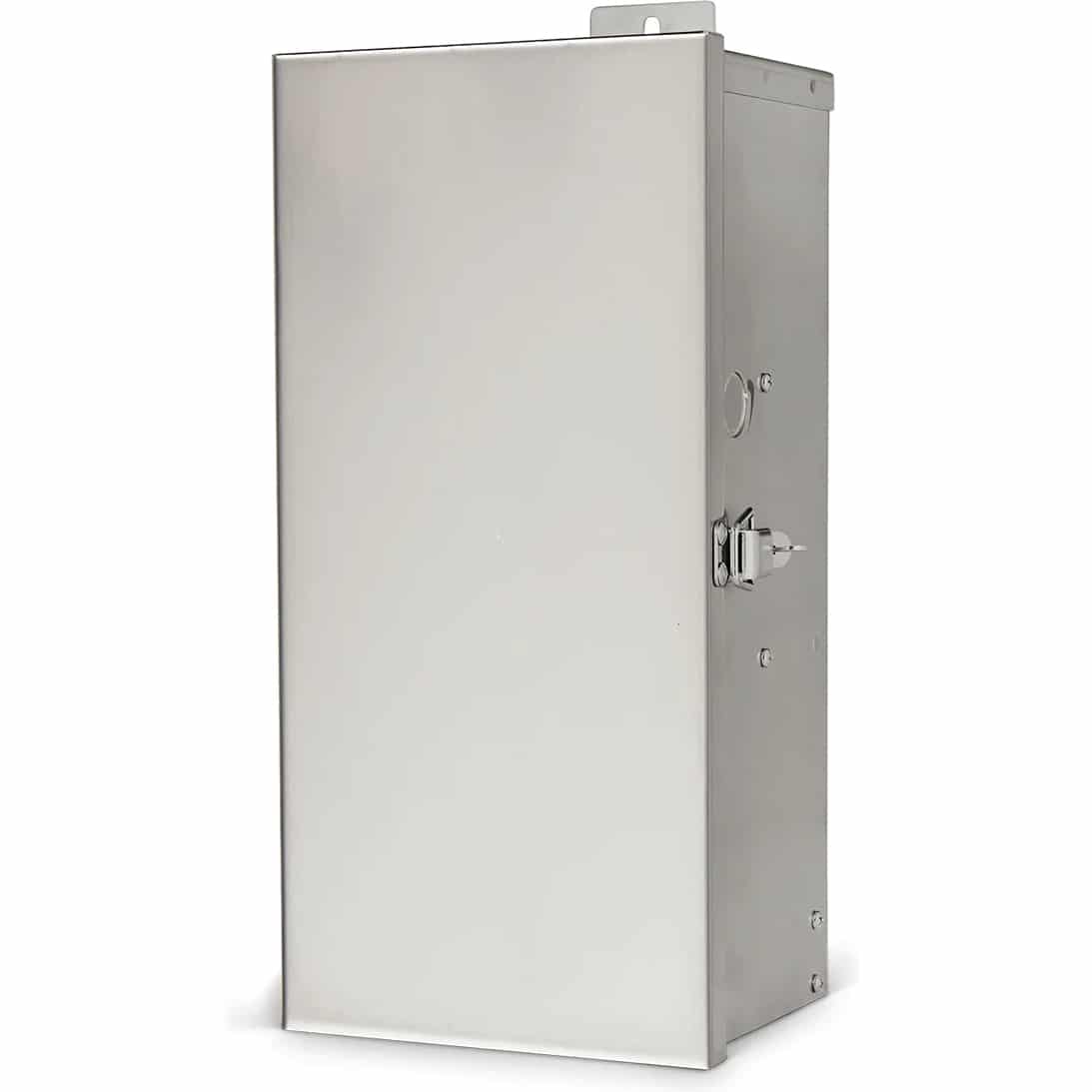

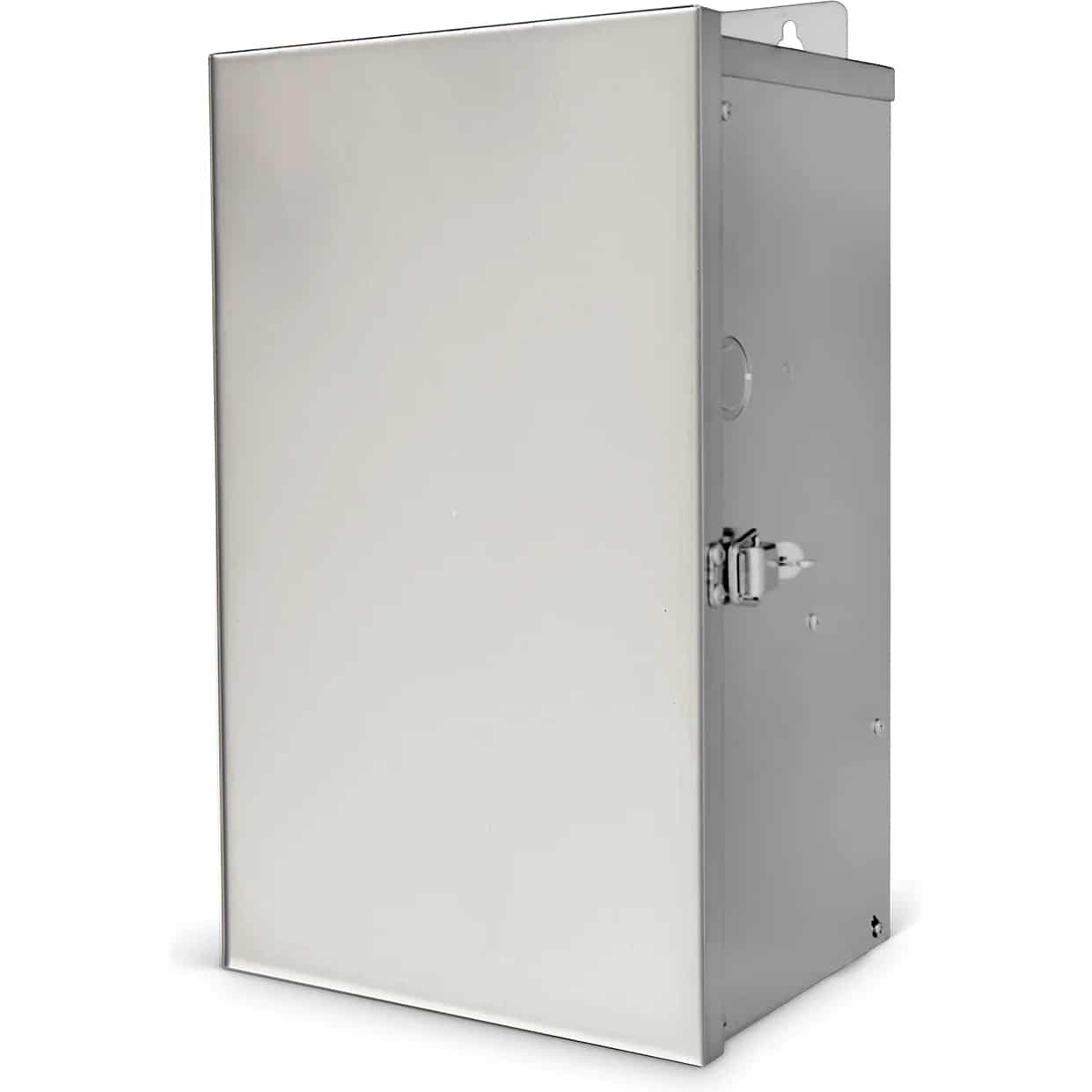

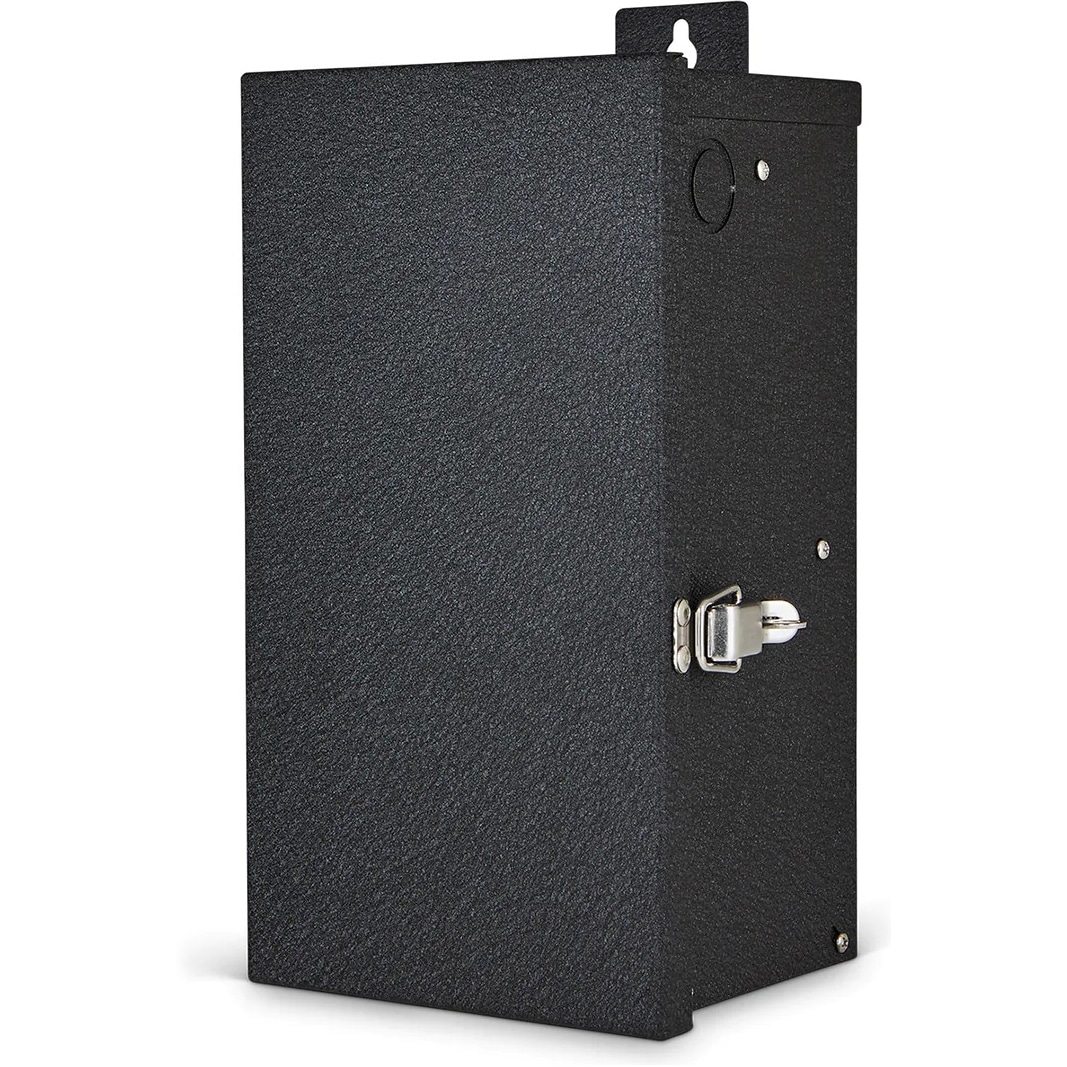

  • ENCLOSURE (CASING): Available in either Black Powder Coated Steel (standard) or unfinished Stainless Steel (optional). Both enclosures are NEMA 3R rated enclosure for outdoor use!
  • PLUG-IN CORD: This transformer comes included with a 6 foot length plug-in cord, which can be hardwired by simply cutting off the prongs on the plug-in cord, and expose the wires.
  • CERTIFICATIONS (LISTINGS): This transformer is ETL and cETL Listed for outdoor wet location use.
  • WARRANTY: Five (5) year manufacturer’s warranty from date of delivery.

ORDERING GUIDE

ORDERING GUIDE

SPEC SHEETS

SPEC SHEETS

SPEC SHEET (150W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (150W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (300W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (300W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (600W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (600W STAINLESS STEEL MODEL): CLICK TO OPEN / DOWNLOAD

SPEC SHEET (900W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (900W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPEC SHEET (1200W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD
