 SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS FIXTURE! |
 |
SPECIFICATION SHEETS (PDF):
|
|
|
|
|
|

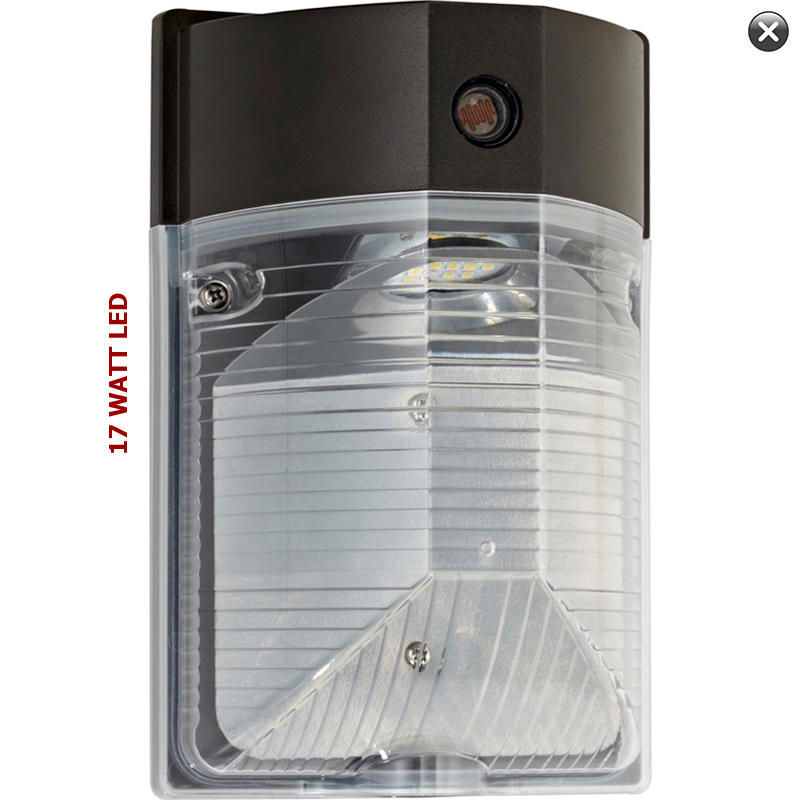

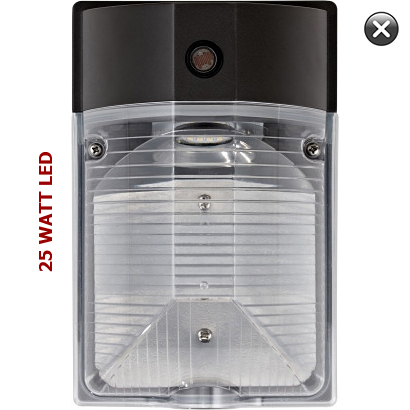

17 to 25 Watt Premium Commercial LED Nova Series Mini Top Cutoff Wall Packs with Included Photocell. These replace 50-80 Watt HID fixtures or 150-275 Watt Halogen fixtures while consuming at least 70% less electricity! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years!

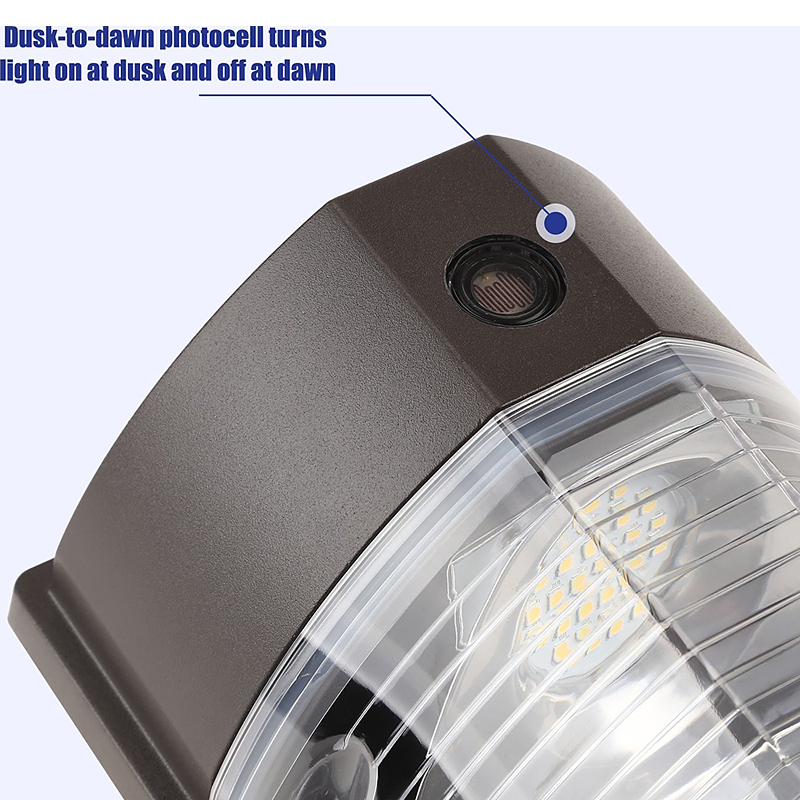

INCLUDES BUILT IN PHOTOCELL:
These LED Mini Wallpacks include a built in Dawn-To-Dusk Photocell. Please note: the included Photocell only works on 100~130VAC. If installing on higher voltages (208~277VAC), the Photocell will not work and you must bypass it.
RECOMMENDED APPLICATIONS:
General illumination for commercial and residential building facades, parking areas, walkways, garages, loading areas and any other space requiring reliable safety and security with minimal light pollution. Enhances security due to LED’s superb color-rendering, making camera recordings much more clear and vivid!
|
|
|
|
BELOW PHOTOS SHOW THESE LED WALLPACKS IN ACTION! CLICK ANY TO ENLARGE!
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THESE LED WALLPACKS BELOW |
|
|

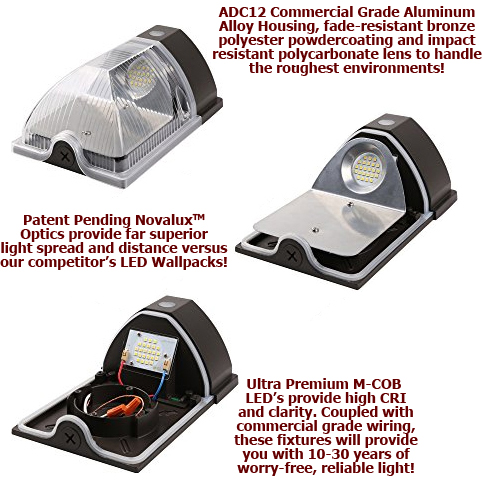

CONSTRUCTION: Sealed Die cast aluminum housing powdercoated in dark bronze with a clear, UV stabilized polycarbonate lens.
|
|
|
INPUT VOLTAGES AVAIABLE: 120VAC ~ 277VAC is standard. The included Photocell will only work on 100~130VAC. If you plan on using this for 277VAC, you must bypass the photocell! For other voltages not listed, please call us.
|
|
|
LIGHT COLOR OUTPUTS: These LED Wall Packs are available with light color outputs of 5000K Cool White or 4000K Pure White. 5000K is recommended for commercial and security applications where highest brightness is most important, while 4000K is recommended for retail and residential applications, offering a warmer light. See the light color example photos above. The 25 Watt Model is only available in 4000K.
|
|
|
LIGHT DISTRIBUTION: These LED Wallpacks offer a wide 120° Beam Spread, offering maximum useful lumen output with little to no light loss! HID and CFL Wall Packs typically lose 50-70% of their lumens in wasted light shooting backwards into the fixture. With these LED Wall Packs, all of the available lumens are put into use, as no light shoots backwards from the source!
|
|
|
CRI: >83. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
LED RATED LIFE: 75,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 25 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for nearly 9 years!!!
|
|
|
INSTALLATION & MOUNTING: Includes all necessary hardware for surface wall mounting.
|
|
|
ESTIMATED ENERGY COSTS OF AN 80 WATT HID WALLPACK – 10 YEAR PERIOD:
$584.00* per fixture
|
|
|
ESTIMATED ENERGY COSTS OF A 25 WATT LED WALLPACK – 10 YEAR PERIOD:
$182.50* per fixture
|
|
|
ESTIMATED SAVINGS USING THIS LED WALLPACK – 10 YEAR PERIOD: $401.50* Not including any rebates by your local power company! *Estimated energy costs are estimated with fixtures running 10 hours per day, 365 days per year at $0.20 Per KWh. Your actual savings will vary based on amount of use and KWh pricing in your area.
|
|
|
|
