24V 6.0 Watt / Foot UL 1-Color HO – 16.4 Feet

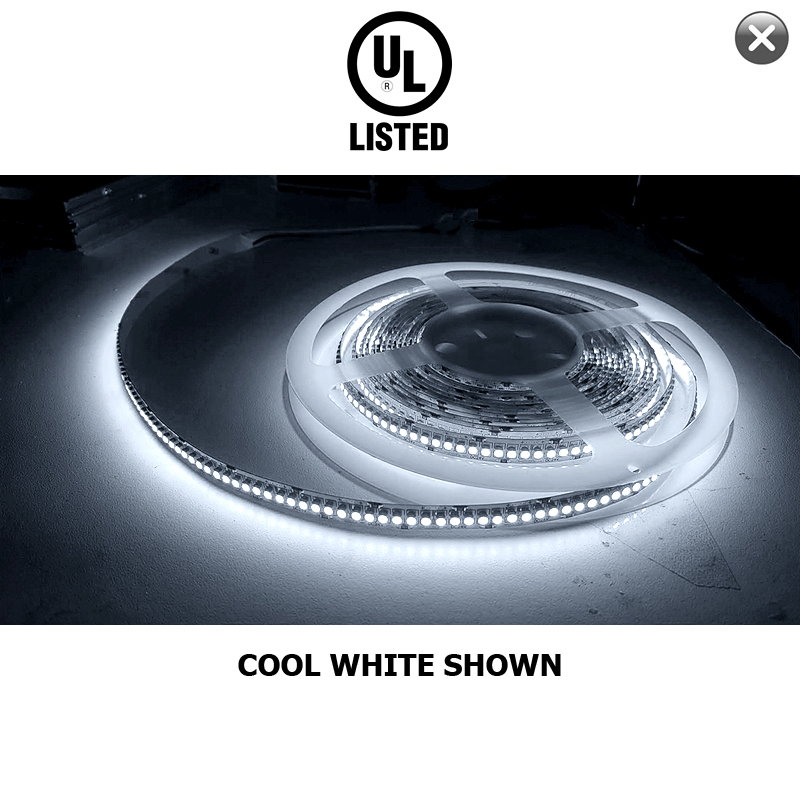

High Brightness, fully flexible 16.5 Foot Spool of 5.88 Watts per foot Linear “Ultra+” High Output 3528 SMD Envision® Premium Series UL Listed 24VDC Low Voltage LED Tape Light. Each 16.5 Foot LED Tape Light Spool comes included with a power connector (24V Transformer NOT included). This LED 24V Tape Light Spool is Available in Warm White (2800K-3200K) or Cool White (5000K-6000K).

Enjoy virtually unlimited uses for this LED Tape light, it is fully flexible, very thin (only 0.1″ thick x 0.38″ Wide!), produces a very even light (little to no “hot spots” unlike Rope Light), consumes just 5.88 Watts per foot or 96 Watts for the entire 16.5 foot spool, and installs just about anywhere with ease (includes 3M tape on the back side)! This Premium LED Linear Tape Light is warrantied for Five (5) Years*!

FEATURES & BENEFITS: UL Listed – will pass all inspections, long life span of over 50,000 hours; Flexible & very slim, field cuttable at every 6 LED’s, approximately every 1″, Includes 3M self-adhesive tape on the back for easy installation onto most flat surfaces; Produces even color between strips at the tightest color tolerances; Little to no heat generation makes it ideal for heat-sensitive areas; No UV light output; Ideal for long runs (runs that are over 33 feet) but also suitable for short runs.

RECOMMENDED APPLICATIONS: Decorative lighting (cove lighting, back lighting) for homes, hotels, stores, yachts, bars, automobiles etc.; Guidance Lighting for cinemas, theatres, yachts , trains to guide people move around safely; Channel letter lighting for your stores, restaurants, bars etc.; The possibilities are nearly endless!

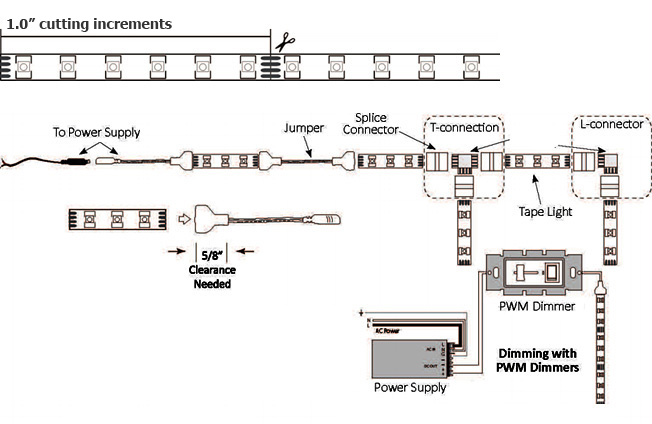

CUTTING AND WIRING DIAGRAM SHOWN BELOW FOR REFERENCE

ADDITIONAL SPECIFICATIONS FOR THIS ULTRA+ 24V UL LISTED LED TAPE LIGHT SPOOL BELOW

LENGTH OF SPOOL: 16.5 Feet, field cuttable every Six (6) LED’s (approximately every 1″). *If you choose to cut the LED Tape Light, make sure you cut tape light where marked, or you will damage sections and void the warranty. DIMENSIONS OF TAPE: 16.5 Feet Long (5 Meters) x 0.38″ (10mm) Wide x 0.094″ (2.2mm) Thick LED CHIPS USED: PREMIUM HIGH OUTPUT SMD 3528 LED’s # OF LED’S: 1200 LED’s per 16.4′ Spool (Approximately 72 LED’s per foot!) LIGHT COLOR OUTPUT: Available in Warm White (2800K-3200K – matches incandescent light output with a yellowish-white appearance) or Cool White (5000K-6000K – bright white with a slight bluish tinge). VOLTAGE: 24 Volt DC Low Voltage. 24VDC Transformer (Driver) is not included but can be ordered in our accessories section. POWER CONSUMPTION: 96 Watts total for the entire 16.5′ Spool (Approximately 5.88 Watts Per Foot). The entire spool consumes 4.0 Amps from the secondary 24VDC (Transformer) side. MAX RUN: Up to 66 feet depending on the 24V Transformer used DIMMABILITY: Fully Dimmable with a Low Voltage In-line PWM Dimmer which is available in our accessories section. If you wish to dim this LED tape light with a standard wall dimmer, you must use one of our magnetic 24VDC dimmable LED transformers as well as a Magnetic Low Voltage Dimmer. MOUNTING: Mounts just about anywhere utilizing durable long lasting 3M Tape on the back! No Mounting Channels or Clips needed, just peel & stick! LUMENS (ENTIRE SPOOL): 11,550 Lumens! LUMENS (PER FOOT): 700 Lumens per foot! BEAM ANGLE (SPREAD): 120° MATERIAL: Commercial Grade UL Listed LED Tape utilizing high grade 3528 SMD LED Chips, Fully flexible and durable USE: Comes Standard for use in indoor dry locations only. IP44 rated for dry or damp locations. NOT rated for Wet Location. LISTINGS: UL Listed (even if cut!), CE, RoHs WARRANTY: Five (5) year limited manufacturer’s warranty from date of delivery. *Warranty void if Tape Light is cut.
