REPLACES 150W – 175W INCANDESCENT OR 36W – 42W CFL! ENERGY STAR RATED!

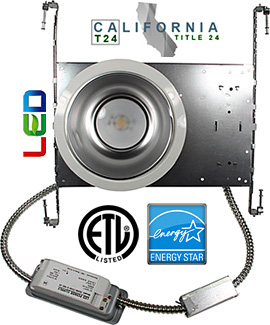

26 Watt Pro Series Commercial LED Integrated Recessed Downlight. Replaces 150-175 Watt Incandescent and Halogen fixtures, or 36-42 Watt PL Fluorescent fixtures while consuming about 50-80% less electricity than an equivalent Downlight! Light output is a whopping 1400 – 1575 lumens using only 26 Watts of power consumption! These fixtures are ETL, Energy Star, and California Title 24 approved! Never change another bulb again! Just install these and forget about them for AT LEAST 10-20 years! These LED commercial recessed downlights are especially perfect for hard-to-reach locations where re-lamping can be a costly (and dangerous) pain in the you know what! Go Smart… Go with our Pro Series LED Integrated Recessed Downlights!
|
LIGHT COLORS AVAILABLE:
This LED recessed downlight is available with light color outputs of 3000K Warm White or 4000K Pure White. 3000K is recommended for residential or retail applications, as it offers a warmer, halogen-like look. 4000K is recommended for office, medical and commercial applications where maximum lumen output is most important, as it offers a light color similar to typical fluorescent output. See the light color chart below for light output color examples.
REVOLUTIONARY OPTIC DESIGN:
These LED recessed downlights feature a state of the art optic design that allows high lumen transmission while still concealing the LED light source. This results in lighting that is not only highly efficient, but virtually glare-free and inviting. You will only see the light, not the bright, harsh LED "dots" you may find with other integrated LED recessed downlights on the market today.
DIMMING:
These LED recessed downlights are fully dimmable from 100% down to 5% with no flickering (120VAC only), and are compatible with almost all standard TRIAC or CFL/LED dimmers. See additional specifications below for a list of compatible dimmers.
RECOMMENDED APPLICATIONS:
Best suited for new construction applications, but can also be used in remodel applications as long as there is sufficient access to the attic area. Great for use in offices, healthcare facilities, educational institutions, and any business or home that wishes to reduce maintenance and and energy consumption costs without sacrificing quality of light!
|
|
|
|
BELOW PHOTOS SHOW THESE LED RECESSED LIGHTS IN ACTION! CLICK ANY TO ENLARGE!
|
|
|
|

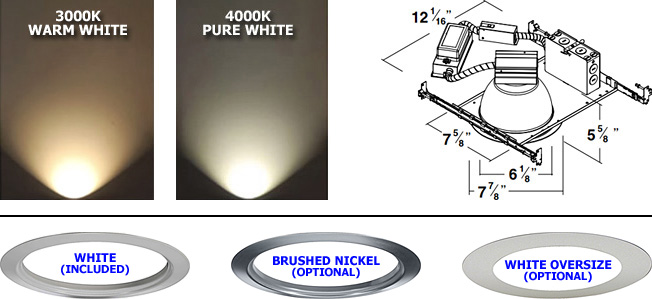

LIGHT COLOR OUTPUT EXAMPLES, PRODUCT DIMENSIONS AND TRIM RINGS SHOWN BELOW
|
|
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS LED RECESSED DOWNLIGHT BELOW |
|
|
CONSTRUCTION (HOUSING): Heavy gauge steel construction.
|
|
|
CONSTRUCTION (TRIM): Die cast aluminum semi-specular chrome Reflector with your choice of a White, Satin Nickel, or Oversize White Trim Ring.
|
|
|
LIGHT DISTRIBUTION: This LED recessed downlight offers a specular flood Beam Spread similar to PL Fluorescent recessed downlights. Unlike PL Fluorescent downlights which shoot light all around the bulb (wasting up to 70% of the light output), these LED recessed downlights shoot all of the available light downward offering maximum useful lumen output with little to no light loss!
|
|
|
LED WATTAGE (POWER USED): +/-26 Watts. Actual tested wattage is 25.13 Watts (3000K model), and 25.31 Watts (4000K model).
|
|
EQUIVALENT TO: 150-175 Watt Incandescent and Halogen, or 36-42 Watt PL Fluorescent. |
|
|
INPUT VOLTAGE: 120VAC Standard. Add $10.00 for 208VAC, 240VAC or 277VAC. For voltages not listed such as 347VAC or 480VAC, please call us.
|
|
|
JUNCTION BOX: This LED recessed downlight features a junction box that is listed for through branch circuit wiring (maximum eight (8) 12AWG 90C conductors, 4 in and 4 out).
|
|
|
DIMMING: These LED recessed downlights are fully dimmable from 100% down to 5% with no flickering (120VAC only), and are compatible with almost all TRIAC or CFL/LED dimmers. Below is a list of tested and approved dimmers for these LED recessed downlights:
LUTRON: CTCL-153PD, DVCL-153PL, CTELV-303P, DVELV-303P, LGCL-153PL
LEVITON: IPI10
|
|
|
POWER FACTOR: >0.981
|
|
|
LED RATED LIFE: 50,000+ Hours, meaning if you were to use these LED recessed downlights for 8 hours per day, 365 days per year, they will last you over 17 YEARS! To put this into perspective, if you were to run these LED recessed downlights 24 hours a day, 365 days per year, they would last for nearly 6 years!!!
|
|
|
CRI: >85. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus fluorescent. You will SEE the difference!
|
|
|
LIGHT COLOR OUTPUTS AVAILABLE: This LED recessed downlight is available with light color outputs of 3000K Warm White or 4000K Pure White. 3000K is recommended for residential or retail applications, as it offers a warmer, halogen-like look. 4000K is recommended for office, medical and commercial applications where maximum lumen output is most important, as it offers a light color similar to typical fluorescent output. See the light color chart above for light output color examples.
|
|
|
LED CHIPS: Uses twelve (12) ultra-premium LED Arrays
|
|
|
SPACING CRITERIA: Call Us
|
|
|
ACTUAL (DELIVERED) LUMENS: 1400 Lumens in 3000K, 1575 Lumens in 4000K (rated at the source).
|
|
|
LUMENS PER WATT: 55.7 lumens per watt in 4000K, 62.2 lumens per watt in 4000K (rated at the source).
|
|
|
PUPIL LUMENS: 2660 Lumens in 3000K, 2990 Lumens in 4000K (what your eyes see).
|
|
|
INSTALLATION & MOUNTING: Includes adjustable (24"” max) bar hangers with nails for installation to joists or standard grid ceilings. This LED recessed downlight is Not IC Rated, meaning the housing must be kept a minimum of 3" away from any insulation. Designed for new construction use, but can be used for remodel purposes as long as you have access to the attic.
|
|
|
CERTIFICATIONS (LISTINGS): ETL & cETL Listed. California Title 24 Approved, CE and RoHS Certified. Rated for dry or damp location use.
|
|
|
WARRANTY: Five (5) year manufacturer’s warranty from date of delivery on the entire fixture.
|
|
|
ESTIMATED TOTAL COST OF A 150 WATT 6" INCANDESCENT RECESSED DOWNLIGHT – 10 YEAR PERIOD:
$1,031.00* per fixture
|
|
|
ESTIMATED TOTAL COST OF THIS 26 WATT 6" PRO LED RECESSED DOWNLIGHT – 10 YEAR PERIOD::
$311.85* per fixture
|
|
|
ESTIMATED SAVINGS USING THIS LED RECESSED DOWNLIGHT – 10 YEAR PERIOD: $719.15* Not including any rebates by your local power company! *Estimated material cost for a 6" recessed downlight includes $60.00 initial cost of the commercial housing, reflector trim and first bulb. Also replacing 150 watt Incandescent A21 bulbs 38 times over 10 years at $2.50 per bulb (these bulbs last only 750 hours), not including labor! You never need to replace any bulbs in these LED recessed downlights! Energy costs are estimated with fixtures running 10 hours per day, 365 days per year at $0.20 Per KWh. Your actual savings will vary based on amount of use and KWh pricing in your area.
|
|
|
|
