 SCROLL DOWN TO SEE ALL INFO AND SPECS FOR THIS LED DOWNLIGHT! |
 |
SPECIFICATION SHEET (PDF):
|
|
|
|
|
|
4" PREMIUM COMMERCIAL ARCHITECTURAL LED DOWNLIGHT! CAN BE USED WITH OR WITHOUT HOUSING! INCLUDES DRYWALL CLIPS FOR EZ INSTALLATION!

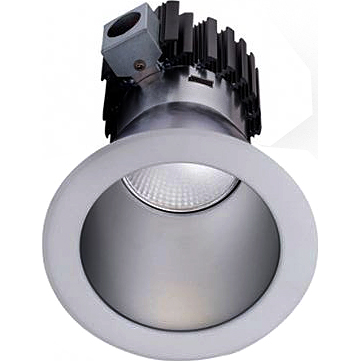

4" Aperture 27 Watt Premium Series Commercial Architectural LED Recessed Downlight / Retrofit Kit. Replaces (equivalent to) 200 Watt Incandescent, 50-70 Watt HID or 42-54 Watt CFL downlights! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years!
A. SELECT YOUR LIGHT COLOR:
Select 3000K Warm White, 4000K Pure White or 5000K Cool / Daylight White.

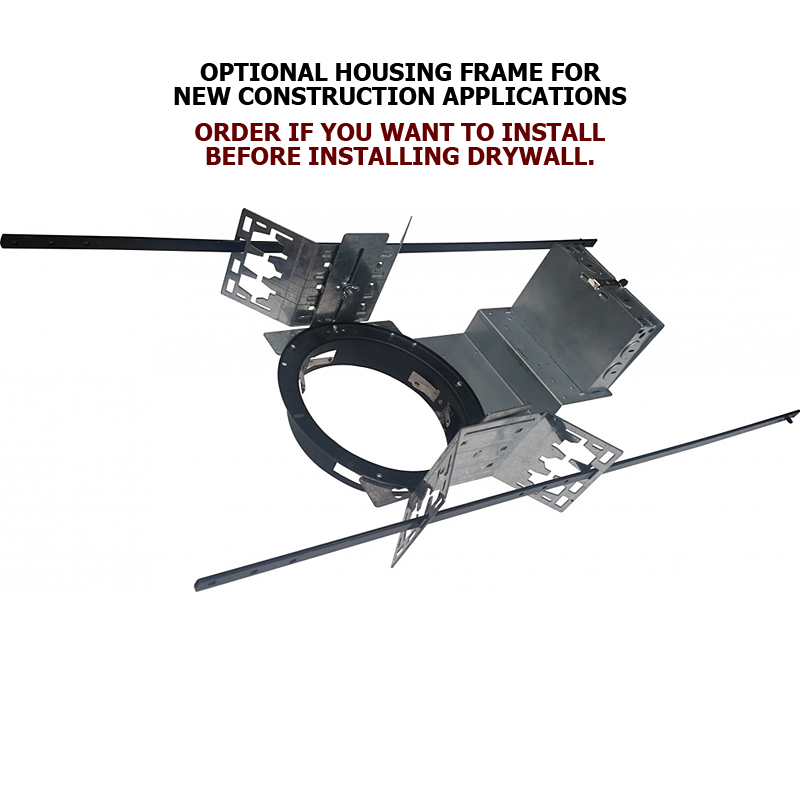

B. SELECT (OPTIONAL) NEW CONSTRUCTION HOUSING FRAME:
For remodel applications, a housing frame is typiucally not required, as you can clip this LED downlight directly to drywall. For new construction applications, we offer an optional 4" architectural housing.
RECOMMENDED APPLICATIONS:

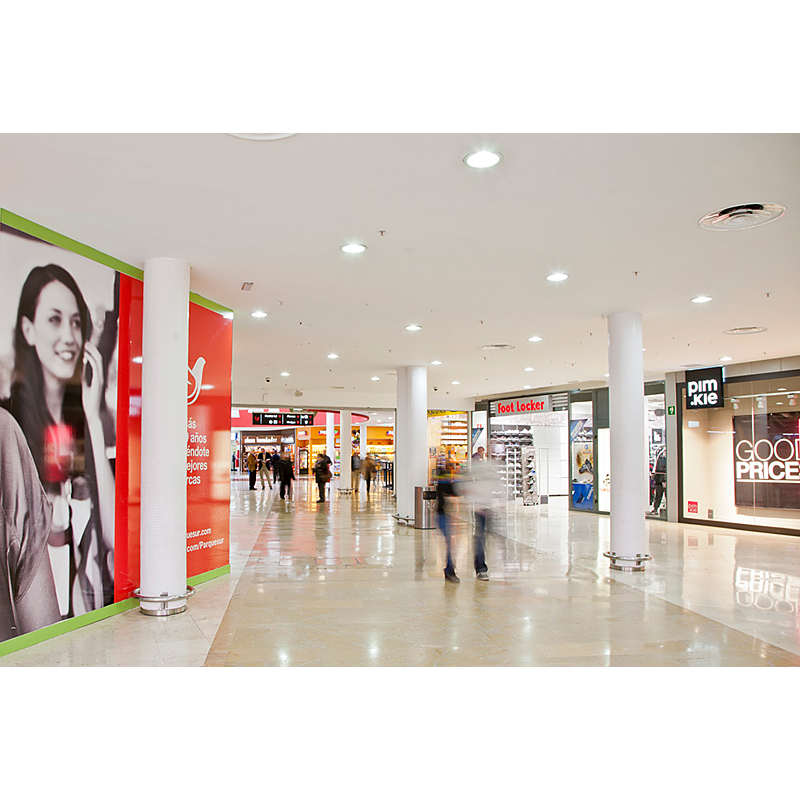

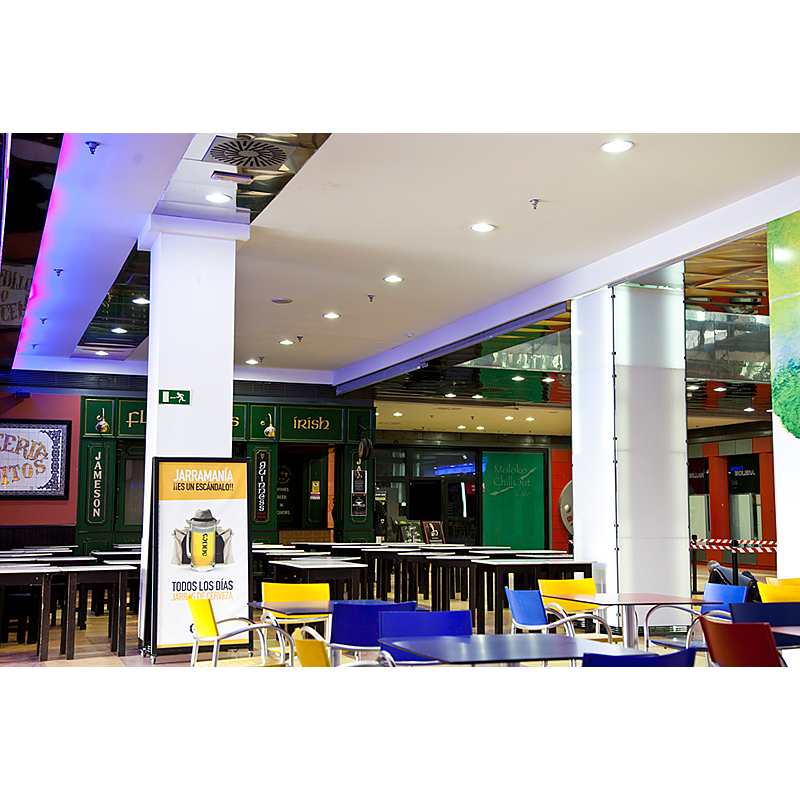

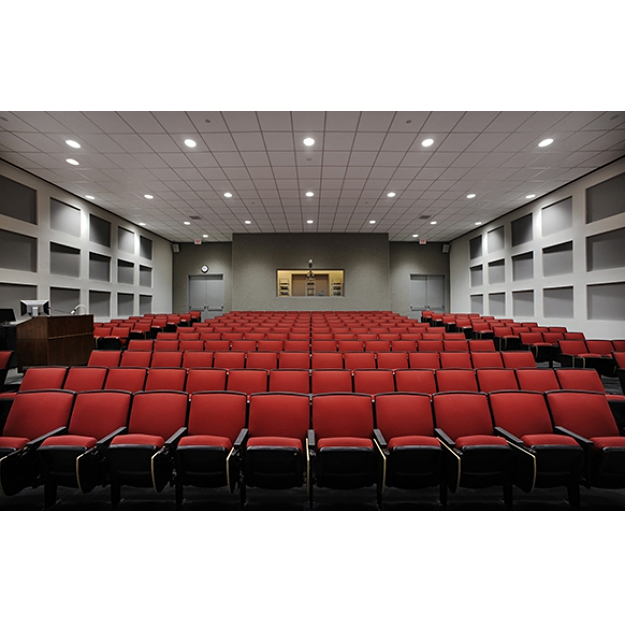

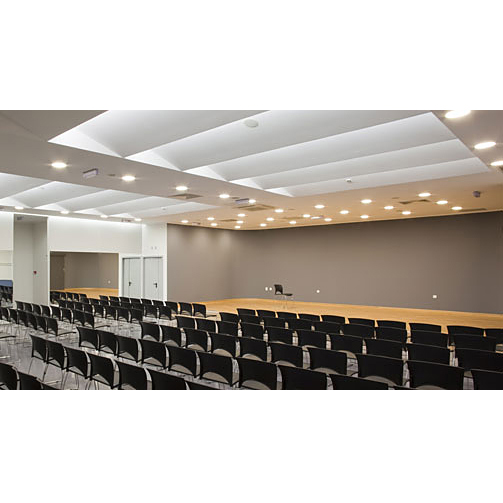

General illumination for classrooms, conference rooms, lobby / reception areas, open offices, retail, corridor areas, auditoriums, private offices, etc.. Enhances security due to LED’s superb color-rendering, making camera recordings much more clear and vivid!
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS LED DOWNLIGHT BELOW |
|
|
CONSTRUCTION: Integral cast aluminum heat sink conducts heat away from LED light engine. Supplied with a heavy gauge anodized aluminum reflector. Driver is accessible from below the ceiling and can be upgraded to accommodate future technology improvements.
|
|
|
INPUT VOLTAGES AVAILABLE: 100VAC ~ 277VAC. For other voltages not listed such as 347VAC or 480VAC, please call us.
|
|
|
LIGHT COLOR OUTPUTS: This Commercial LED Downlight is available with light color outputs of 3000K Warm White, 4000K Pure White or 5000K Cool / Daylight See the light color example photos above.
|
|
|
LIGHT DISTRIBUTION: 40° Narrow Flood.
|
|
|
CRI: >80. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
LED RATED LIFE: 100,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 34 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for over 11 years!!!
|
|
|
DIMMING: Fully dimmable with any 0-10V dimming system.
|
|
|
INSTALLATION & MOUNTING: Installs in minutes! Can be installed by cutting a hole into existing drywall and attaching to the drywall with included drywall clips (no housing needed!). Also can be easily installed into existing remodel or new construction 4" commercial housings. Simply remove the existing bulb & trim, cut off the existing socket from the housing to expose the wires (MAKE SURE YOUR POWER IS OFF TO PREVENT INJURY), and simply splice in the retrofit kit! The external LED driver is designed to fit in the existing junction box on the housing. If you are retrofitting a CFL or HID housing, remove the existing ballast and replace with the external driver. For New Construction (no drywall) installation, either install the drywall first or use our optional architectural housing frame (see above).
|
|
|
ESTIMATED ANNUAL ENERGY COSTS OF A 70 WATT HID DOWNLIGHT:
$40.88* per light
|
|
|
ESTIMATED ANNUAL ENERGY COSTS OF A 27 WATT LED DOWNLIGHT:
$15.77* per light
|
|
|
ESTIMATED ANNUAL SAVINGS USING THIS LED DOWNLIGHT: $25.11* Not including any rebates by your local power company! *Estimated energy costs are estimated with fixtures running 10 hours per day, 365 days per year at $0.20 Per KWh. Your actual savings will vary based on amount of use and KWh pricing in your area.
|
|
|
|
|
|
