 WOW! UNBELIEVABLE PRICE! FULLY INTEGRATED SQUARE! STARTING AT ONLY $87.99!
|
|

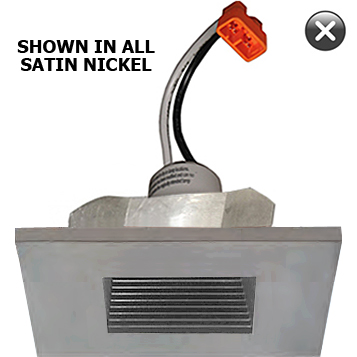

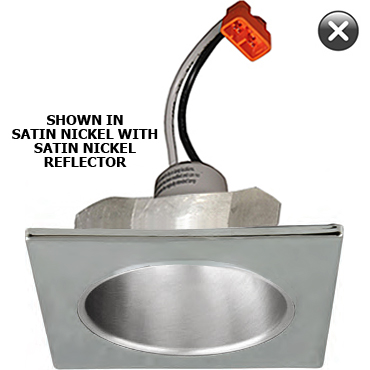

COLOR OPTIONS FOR THIS TRIM SHOWN BELOW – CLICK ANY TO ENLARGE
|
|
|
SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS LED RETROFIT!
|
|
|
IT’S FINALLY HERE! 3" INTEGRATED TRUESPEC™ LED DECO SQUARE BAFFLE II TRIM!
550 LUMENS! AVAILABLE IN 3000K OR 5000K LIGHT COLOR! 40° BEAM ANGLE!
NOW ≥90 CRI HD LIGHTING, MEETS NEWEST CA TITLE 24 REQUIREMENTS!
3" 120V or 12V LED Dimmable Integrated TrueSpec™ Recessed Deco Adjustable Square Baffle I Series Retrofit Kit. Comes with everything you need for an EZ install into your existing 3" 120V or 12V Halo-Compatible Recessed Housing. These will fit in almost ANY 3" housing out there!
This Retrofit Kit offers a whopping 550 lumens using just 7 watts! It is available in 3000K Warm White, which looks like standard Halogen lighting, or 5000K Cool White, which looks bright white, closer to natural daylight. See image below for light color examples! These will replace up to 50 Watt Incandescent or Halogen lighting, and offers a 40° Narrow Beam Spread which is identical to a typical halogen narrow flood bulb, allowing you to "focus" the light right where you want it! These Retrofit Kits last over 50,000 hours, or more than 10 years even with heavy usage!
This retrofit kit is fully dimmable down to 5%, offers "instant on" full brightness (no more waiting for your CFL to "warm up"). This retrofit kit is also is UL Listed for Wet Location, ROHS Compliant, Energy-Star Rated, uses at least 84% electricity than incandescent or halogen, is mercury free (safe for the environment) and emits no UV radiation unlike Fluorescent, making it safer for you and any valuable artwork!
Go Smart, Go LED! This LED Retrofit kit comes with a full Five (5) year manufacturer’s warranty.
CALIFORNIA TITLE 24 APPROVED!
|
|
|
|
DIMENSIONS, BEAM SPREAD & LIGHT COLOR OUTPUT FOR THIS 3″ LED RETROFIT KIT SHOWN BELOW
|
|
|
|
SEE THE DIFFERENCE! HIGHER CRI = BETTER LIGHT!
|
|
|
|
|
| ADDITIONAL FEATURES AND SPECIFICATIONS FOR THIS 3" TRUESPEC™ LED RETROFIT KIT |
|
 |
MATERIAL: Extruded Aluminum with premium heavy duty aluminum heatsinks. Unlike many of the cheap units you might find at Home Depot, Lowe’s etc., this Retrofit Kit is all die-cast metal!
|
|
|
DIMENSIONS: See diagram above. Designed to fit most 3" standard and shallow housings!
|
|
|
VOLTAGE: 120VAC. Can operate in 12V Low Voltage housings, just simply bypass the housing’s transformer!
|
|
|
LED WATTAGE: 7 Watts.
|
|
|
COMPARABLE TO: 50 Watts Incandescent / Halogen.
|
|
|
LUMEN OUTPUT: 550 Lumens.
|
|
BEAM ANGLE: 40° Narrow Beam Spread which is identical to a typical halogen narrow flood bulb, allowing you to "focus" the light right where you want it!
|
|
LIGHT COLOR OUTPUT: This LED Retrofit Kit comes with a light color output of 3000K Warm White or 5000K Cool White.
|
|
|
CRI: ≥90! These LED retrofit kits meet the newest California Title 24 Requirements, and are great for applications such as Retail Lighting where high quality light is desirable!
|
|
|
DIMMING: Fully Dimmable from 100% – 5% with almost any 120VAC Triac Compatible Dimmer!
|
|
|
COMPATIBILITY: Compatible with almost all (99%) of the standard 3" housings (Halo, Capri, Juno, Commercial Electric, Utilitech, etc). If you are unsure if your housing is compatible, call us and we will confirm it for you!
|
|
|
INSTALLATION: Installs in minutes and easily "pops" into your existing housing. Torsion springs supplied for convenient mounting to existing remodel or new construction 3" 120v housings. Includes E26 Medium Screw-in Base Adapter, GU10 Adapter is optional. For California Title 24 "No Edison socket" compliance, simply cut off the screw base from the retrofit kit, cut off the socket from the housing to expose the wires. If installing into a 12v Low Voltage housing, make sure you 1) Bypass the 12v low voltage transformer on the housing, 2) cut off the socket in the housing to expose the wires, 3) cut off the connector end on the LED retrofit kit, 4) splice the retrofit kit to the cut wires on the housing. (MAKE SURE YOUR POWER IS OFF TO PREVENT INJURY), and simply splice them together!
|
|
|
ESTIMATED ENERGY COSTS USING A 50 WATT HALOGEN SOURCE – 10 YEAR PERIOD:
$292.00* per unit
|
|
|
ESTIMATED ENERGY COSTS USING THIS 7 WATT LED SOURCE – 10 YEAR PERIOD:
$40.88* per unit
|
|
|
ESTIMATED LED SAVINGS – 10 Year Period: $251.12* Not including any rebates by your local power company! *Estimate assumes fixtures will be running 8 hours per day, 365 days a year @ $0.20 Per KWh. Savings will vary based on amount of use and KWh pricing in your area.
|
|
|
CERTIFICATIONS: UL Listed for wet, damp or dry location, California Title 24 Compliant, RoHS compliant.
|
|
|
WARRANTY: 5 Year manufacturer’s warranty from date of delivery against any defects.
|
|
|
|
|
|
|
