"Bright" 1.5 Watt / Foot 12VDC 335 SMD Side-Emitting 1-Color LED Tape (16.5 Feet)

“Bright” 1.5 Watt / Foot 12VDC 335 SMD Side-Emitting 1-Color LED Tape (16.5 Feet)

$79.99

SKU: LT1S1-SE

In Stock

Quantity:
x
SKU: LT1S1-SE Categories: ,

Details

IT’S FINALLY HERE! SIDE EMITTING LED TAPE LIGHT! SHOOTS LIGHT UP OR DOWN!
SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS LED TAPE LIGHT!
NEED TO WALL WASH? NOW YOU CAN DO IT WITH SIDE-EMITTING LED TAPE LIGHT!

High Brightness, fully flexible 16.5 Foot Spool of 1.47 Watts per foot Linear "Bright" 335 SMD Envision® Premium Side-Emitting Series 12VDC Low Voltage LED Tape Light. Each 16.5 Foot LED Tape Light Spool comes included with a power connector. 12VDC transformer (driver) is NOT included.
Click Here see our accessories section.

Enjoy virtually unlimited uses for this LED side emitting Tape light! It is fully flexible, very thin and slim (only 0.1" thick x 0.32" Wide); produces a very even light; consumes just 1.47 Watts per foot or 24 Watts for the entire 16.5 foot spool; Installs just about anywhere with ease (includes 3M tape on the back side). This Premium LED Linear Tape Light is warrantied for Five (5) Years*!

LIGHT COLORS AVAILABLE:
This LED 12V Tape Light Spool is Available in Warm White (2700K-3200K) or Cool White (5000K-6000K). Single colors such as Red, Green, Blue, etc. are available via special order, please call us to inquire!

FEATURES & BENEFITS:
Long life span of over 50,000 hours; Flexible & very slim; field cuttable at every 3 LED’s; Side-emitting design makes it ideal for wall washing in tight areas; Includes 3M self-adhesive tape on the back for easy installation onto most flat surfaces; Produces even color between strips at the tightest color tolerances; Little to no heat generation makes it ideal for heat-sensitive areas; No UV light output.

LED COMPONENTS USED:
This state of the art LED side-emitting tape light features the latest in LED technology utilizing 335 smd ESD Zener Diodes. These compact but powerful diodes produce over 1800 mcd per 0.06 watt LED! A candle flame, for example, is 1000 mcd, so that means that each LED produces 1.8 candle power of light using just 0.06 watts!

RECOMMENDED APPLICATIONS:
Decorative lighting (cove lighting, back lighting) for homes, hotels, stores, yachts, bars, automobiles etc; Guidance Lighting for cinemas, theatres, yachts; As a pathway marker to guide people around safely in dark environments; Wall washing; Picture lighting…The possibilities are nearly endless!

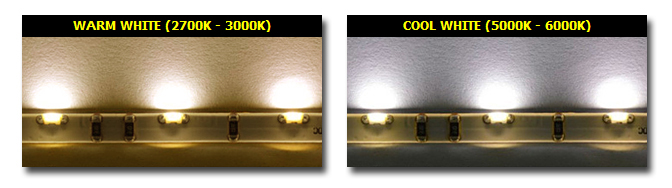

AVAILABLE LIGHT COLOR EXAMPLES SHOWN BELOW
BELOW PHOTOS SHOW LED SIDE-EMITTING TAPE LIGHT IN ACTION! CLICK ANY TO ENLARGE!

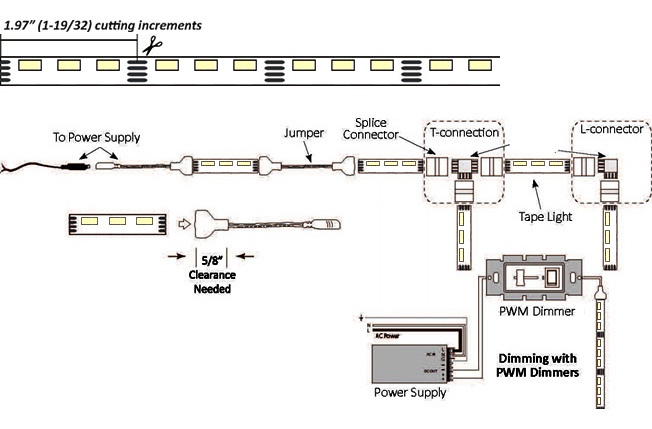

CUTTING AND WIRING DIAGRAM SHOWN BELOW FOR REFERENCE
ADDITIONAL SPECIFICATIONS FOR THIS 12V LED SIDE-EMITTING TAPE LIGHT SHOWN BELOW
LENGTH OF SPOOL: 16.5 Feet, field cuttable every Three (3) LED’s (approximately every 1.97"). Please note: If you choose to cut the LED Tape Light, make sure you cut tape light where marked, or you will damage sections and void the warranty.
DIMENSIONS OF TAPE: 16.5 Feet Long (5 Meters) x 0.32" (8mm) Wide x 0.094" (2.2mm) Thick
LED COMPONENTS USED: This state of the art LED side-emitting tape light features the latest in LED technology utilizing 335 smd ESD Zener Diodes. These compact but powerful diodes produce 1800 mcd per 0.06 watt LED! A candle flame, for example, is 1000 mcd, so that means that each LED produces 1.8 candle power of light using just 0.06 watts!
# OF LED’S: 300 LED’s per 16.5′ Spool (Approximately 18 LED’s per foot).
LIGHT COLOR OUTPUTS AVAILABLE: This LED 12V Tape Light Spool is Available in Warm White (2700K-3200K) or Cool White (5000K-6000K). Single colors such as Red, Green, Blue, etc. are available via special order, please call us to inquire!
VOLTAGE: 12 Volt DC Low Voltage. 12VDC Transformer (Driver) is not included but can be ordered in our accessories section. Click Here to see our accessories section.
POWER CONSUMPTION: 24 Watts total for the entire 16.5′ Spool (Approximately 1.47 Watts Per Foot). The entire spool consumes 2.0 Amps from the secondary (Transformer) side.
MAX RUN: Up to 50 feet depending on the 12V Transformer used.
DIMMING: Fully Dimmable with a Low Voltage In-line PWM Dimmer which is available in our accessories section.
Click Here to see our accessories section.

If you wish to dim this LED tape light with a standard wall dimmer, you must use one of our magnetic 12VDC dimmable LED transformers as well as a Magnetic Low Voltage Dimmer.
Click Here to see our accessories section.
LED RATED LIFE: 50,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 17 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for nearly 6 years!!!
LUMENS (ENTIRE SPOOL): 1520 Lumens in Cool White, 1400 Lumens in Warm White. Lumens naturally vary depending on color ordered.
LUMENS (PER FOOT): 92.6 Lm/Foot in Cool White, 85.3 Lm/Foot in Warm White. Lumens naturally vary depending on color ordered.
BEAM ANGLE (SPREAD): 110°
USE: Comes Standard for use in indoor dry locations (IP20 rated). Outdoor Wet Location use (IP65 Rated) is available for $10.00 add’l per spool.
LISTINGS: CE, RoHs
WARRANTY: Five (5) year limited manufacturer’s warranty from date of delivery.
*Warranty void if Tape Light is cut.
