12V 2.2 Watt / Foot Single Color – 98.5 Feet

$279.99

SKU: LT2S1-98

In Stock

Quantity:
x

Product Description

LOOKING FOR HIGH QUALITY AND GREAT PRICES? YOU’VE COME TO THE RIGHT PLACE!

High Brightness, fully flexible 98.5 Foot Length of 2.2 Watts per foot Linear “Brighter” 5050 SMD Envision® Premium Series 12VDC Low Voltage LED Tape Light.Each 98.5 Foot LED Tape Light Length comes included with all required power connectors and splice connectors. Requires a 12 Volt DC Transformer (NOT included). This LED 12V Tape Light Spool is Available in Warm White (2700K-3000K), Pure White (4000K-4500K), Cool White (5000K-6000K), Red, Blue, Green, or Yellow. If you need a specific Light Color (i.e. 3200K) or are matching a prior order, please call us before ordering and we will be able to accomodate you!

Enjoy virtually unlimited uses for this LED Tape light, it is fully flexible, very thin (only 0.1″ thick x 0.38″ Wide!), produces a very even light (little to no “hot spots” unlike Rope Light), consumes just 2.2 Watts per foot or 216 Watts for the entire 98.5 foot length, and installs just about anywhere with ease (includes 3M tape on the back side)! This Premium LED Linear Tape Light is warrantied for Five (5) Years*!

FEATURES & BENEFITS: Long life span of over 50,000 hours; Flexible & very slim, field cuttable at every 6 LED’s, Includes 3M self-adhesive tape on the back for easy installation onto most flat surfaces; Produces even color between strips at the tightest color tolerances; Little to no heat generation makes it ideal for heat-sensitive areas; No UV light output.

RECOMMENDED APPLICATIONS: Decorative lighting (cove lighting, back lighting) for homes, hotels, stores, yachts, bars, automobiles etc.; Guidance Lighting for cinemas, theatres, yachts , trains to guide people move around safely; Channel letter lighting for your stores, restaurants, bars etc.; The possibilities are nearly endless!

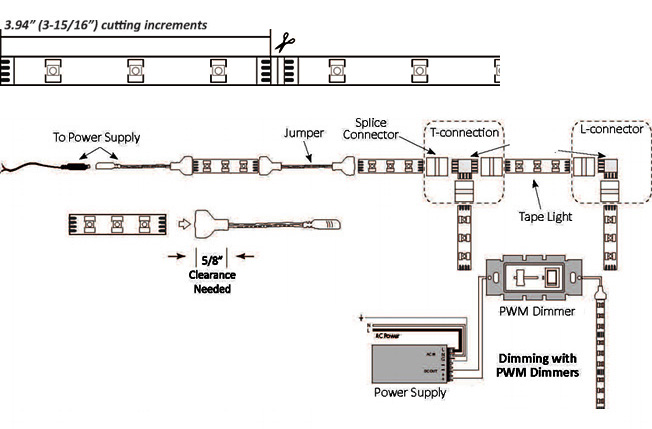

CUTTING AND WIRING DIAGRAM SHOWN BELOW FOR REFERENCE
ADDITIONAL SPECIFICATIONS FOR THIS 12V LED TAPE LIGHT BELOW
LENGTH OF TAPE: 98.5 Feet, field cuttable every Three (3) LED’s (approximately every 3.94″). *If you choose to cut the LED Tape Light, make sure you cut tape light where marked, or you will damage sections and void the warranty.

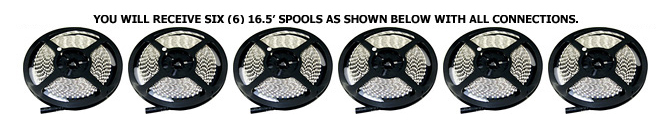

OPTIONS ON HOW YOU WILL RECEIVE THE LED TAPE: The 98.5 foot length will come standard as Six (6) 16.5 foot spools and will all neccessary connectors. If you wish, we can send you the Six (6) 16.5 foot spools already connected together and ready to go. This option is $100.00 add’l.
DIMENSIONS OF TAPE: 98.5 Feet Long (5 Meters) x 0.38″ (10mm) Wide x 0.094″ (2.2mm) Thick
LED CHIPS USED: Premium SMD 5050 LED’s
# OF LED’S: 900 LED’s per 98.5′ Length (Approximately 9 LED’s per foot)
LIGHT COLOR OUTPUT: Available in Warm White (2700K-3000K), Pure White (4000K-4500K), Cool White (5000K-6000K), Red, Blue, Green, or Yellow. If you need a specific Light Color (i.e. 3200K) or are matching a prior order, please call us before ordering and we will be able to accomodate you! Red, Blue, Green & Yellow are $30.00 add’l, Pure White (4000K-4500K) is $100.00 add’l. See color options above when ordering.
VOLTAGE: 12 Volt DC Low Voltage. 12VDC Transformer (Driver) is not included but can be ordered in our accessories section.
POWER CONSUMPTION: 216 Watts total for the entire 98.5′ Length (Approximately 2.2 Watts Per Foot). The entire length consumes 18.0 Amps from the secondary (Transformer) side.
MAX RUN: Up to 33 feet depending on the 12V Transformer used. If you wish to run the entire 98.5′ in one linear run, you will need to run three lines from the transformer (i.e. one to power 0-33 feet, one to power 33-66 feet, and one to power 66-98.5 feet).
DIMMABILITY: Fully Dimmable with a Low Voltage In-line PWM Dimmer which is available in our accessories section.

If you wish to dim this LED tape light with a standard wall dimmer, you must use one of our magnetic 12VDC dimmable LED transformers as well as a Magnetic Low Voltage Dimmer.

MOUNTING: Mounts just about anywhere utilizing durable long lasting 3M Tape on the back! No Mounting Channels or Clips needed, just peel & stick!
LUMENS (ENTIRE LENGTH): 13,860 Lumens in Cool White, 11,370 Lumens in Warm White, 7080 Lumens in Red, 7080 Lumens in Green, 7080 Lumens in Yellow, 5280 Lumens in Blue. Lumens naturally vary depending on color ordered.
LUMENS (PER FOOT): 140 Lm/Foot in Cool White, 115 Lm/Foot in Warm White, 72 Lm/Foot in Red, 72 Lm/Foot in Green, 72 Lm/Foot in Yellow, 54 Lm/Foot in Blue. Lumens naturally vary depending on color ordered.
BEAM ANGLE (SPREAD): 120°
MATERIAL: Commercial Grade LED Tape utilizing high grade 5050 SMD LED Chips, Fully flexible and durable
USE: Comes Standard for use in indoor dry locations (IP20 rated). Outdoor Wet Location use (IP65 Rated) is available for $60.00 add’l per spool.
LISTINGS: CE, RoHs
WARRANTY: Five (5) year limited manufacturer’s warranty from date of delivery.
*Warranty void if Tape Light is cut.
