 INFO AND SPECS FOR THESE RGB LED DMX512 DECODERS SHOWN BELOW. |
|
|
EASILY CONVERT STANDARD OR SUPERCHIP LOW VOLTAGE COLOR-CHANGING LED STRIP LIGHTING TO WORK ON YOUR EXISTING DMX512 SYSTEM IN MINUTES!
Our DMX512 Decoders take an existing DMX signal From your DMX512 system and converts the standard RGB signal from your LED Strip Light, LED Modules, etc. to DMX512, providing maxiumum color and brightness control that standard RGB controllers can’t do. Setup is easy! Just connect the DMX input on this unit, assign the DMX channel ID using the dip switches on the decoder, and connect the red, green and blue wires from your LED Strip Light to the DMX Decoder, and connect the power from your 12V or 24V LED DC Transformer! See wiring diagram above.
|
|
|
| ADDITIONAL INFORMATION FOR THESE RGB LED DMX512 DECODERS BELOW |
|
 |
MAX RGB LED STRIP (TAPE) LIGHT LENGTHS (3-CHANNEL DECODER):
Please keep in mind that longer runs will require Signal Amplifier(s).
4.4 Watt Standard™ 12V RGB LED Tape Light: 65 feet of RGB LED Strip (288W Max)
4.4 Watt SuperChip 24V™ RGB LED Tape Light: 131 feet of RGB LED Strip (576W Max)
|
|
|

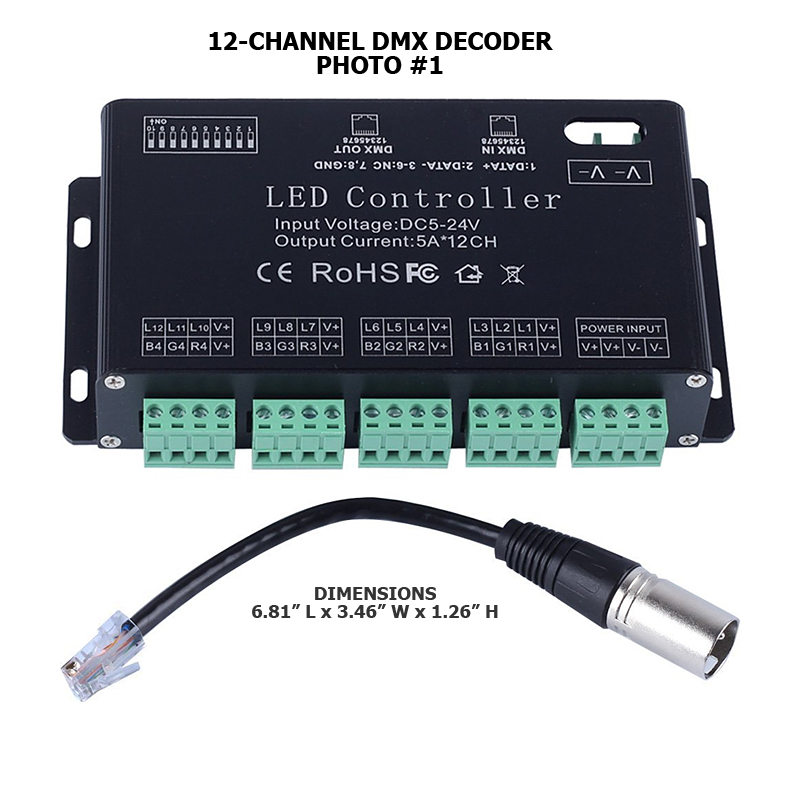

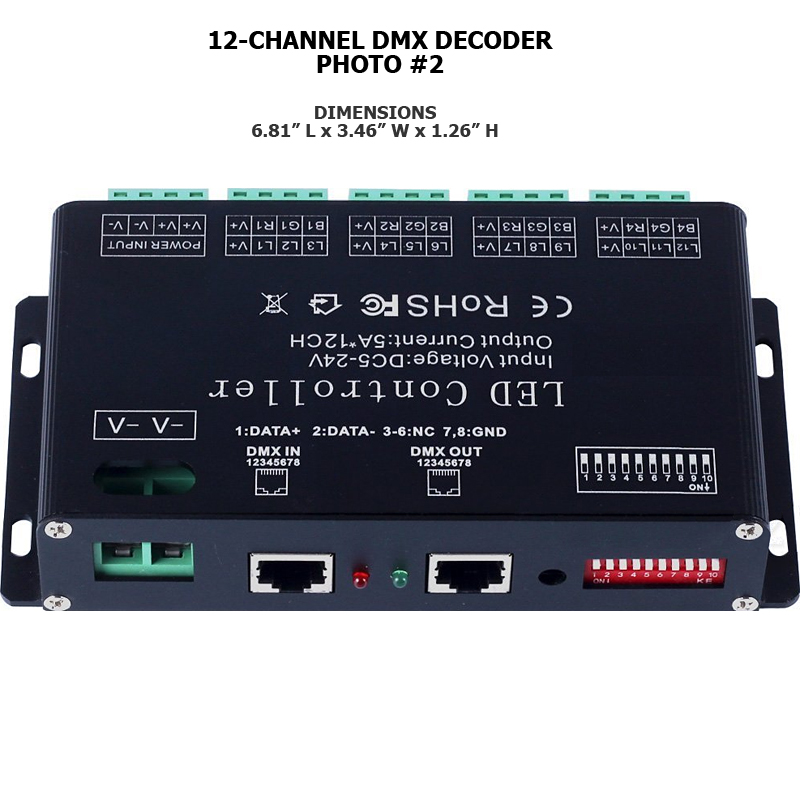

MAX RGB LED STRIP (TAPE) LIGHT LENGTHS (12-CHANNEL DECODER):
Please keep in mind that longer runs will require Signal Amplifier(s).
4.4 Watt Standard™ 12V RGB LED Tape Light: 164 total feet (41 feet per each 3 Channels) of RGB LED Strip (720W Max Total, or 180W Max per each 3 Channels).
4.4 Watt SuperChip 24V™ RGB LED Tape Light: 328 total feet (82 feet per each 3 Channels) of RGB LED Strip (1,440W Max Total, or 360W Max per each 3 Channels).
|
|
|

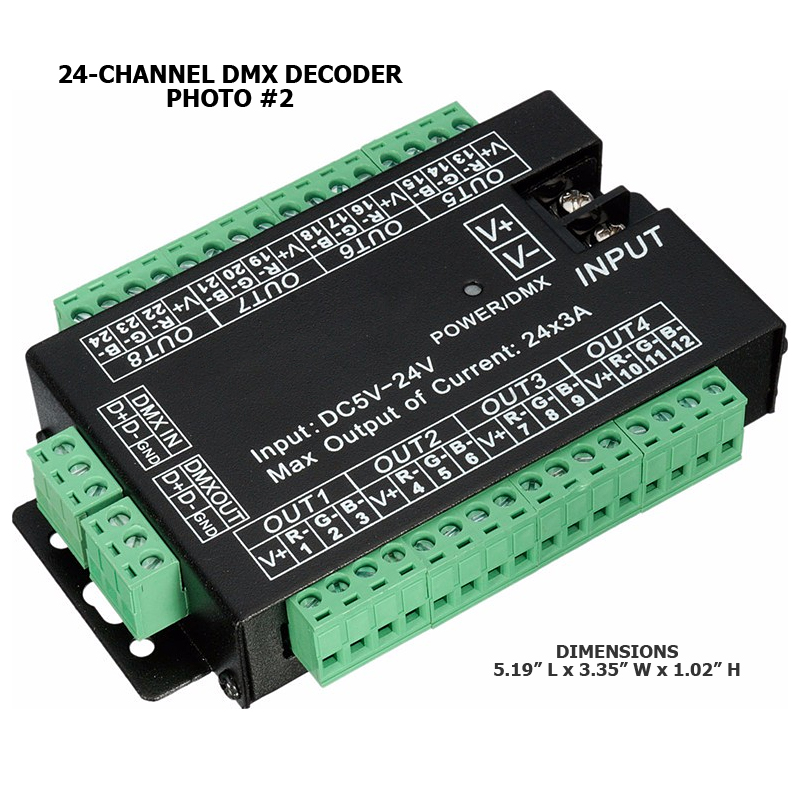

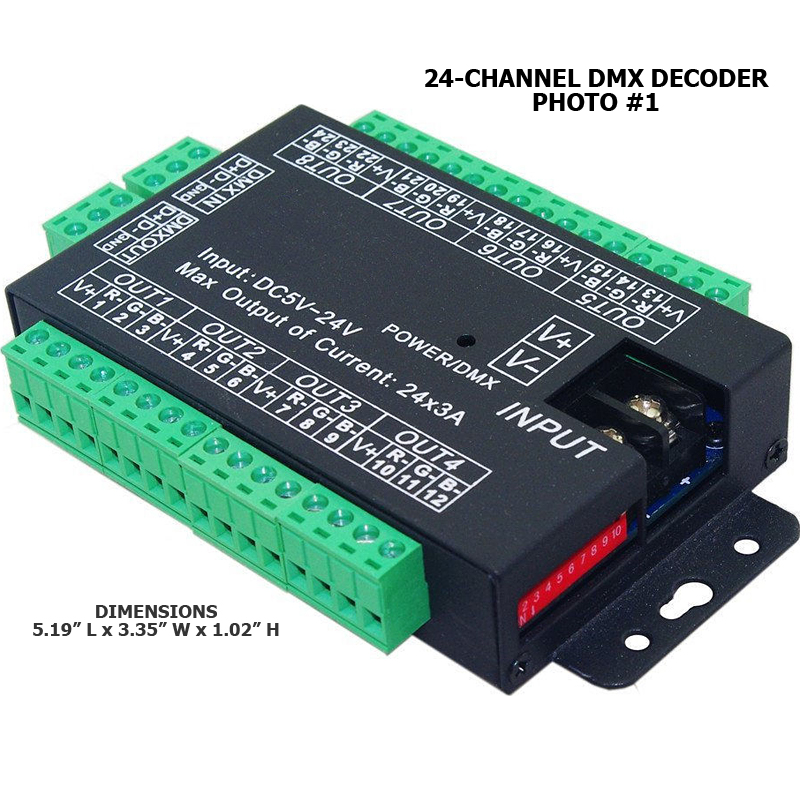

MAX RGB LED STRIP (TAPE) LIGHT LENGTHS (24-CHANNEL DECODER):
Please keep in mind that longer runs will require Signal Amplifier(s).
4.4 Watt Standard™ 12V RGB LED Tape Light: 196 total feet (24.5 feet per each 3 Channels) of RGB LED Strip (864W Max Total, or 108W Max per each 3 Channels).
4.4 Watt SuperChip 24V™ RGB LED Tape Light: 392 total feet (49 feet per each 3 Channels) of RGB LED Strip (1,728W Max Total, or 180W Max per each 3 Channels).
|
|
|

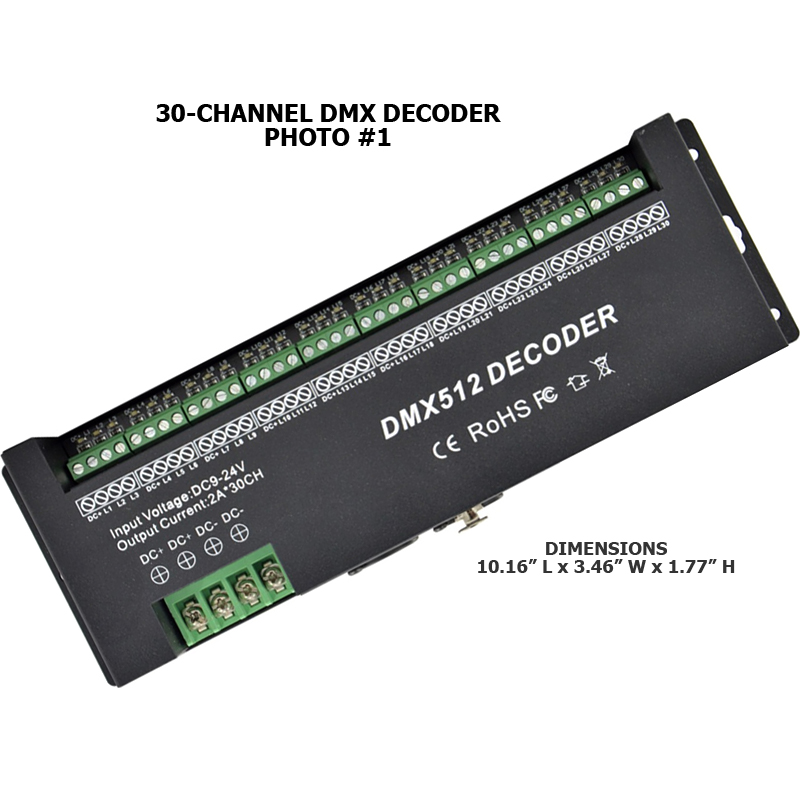

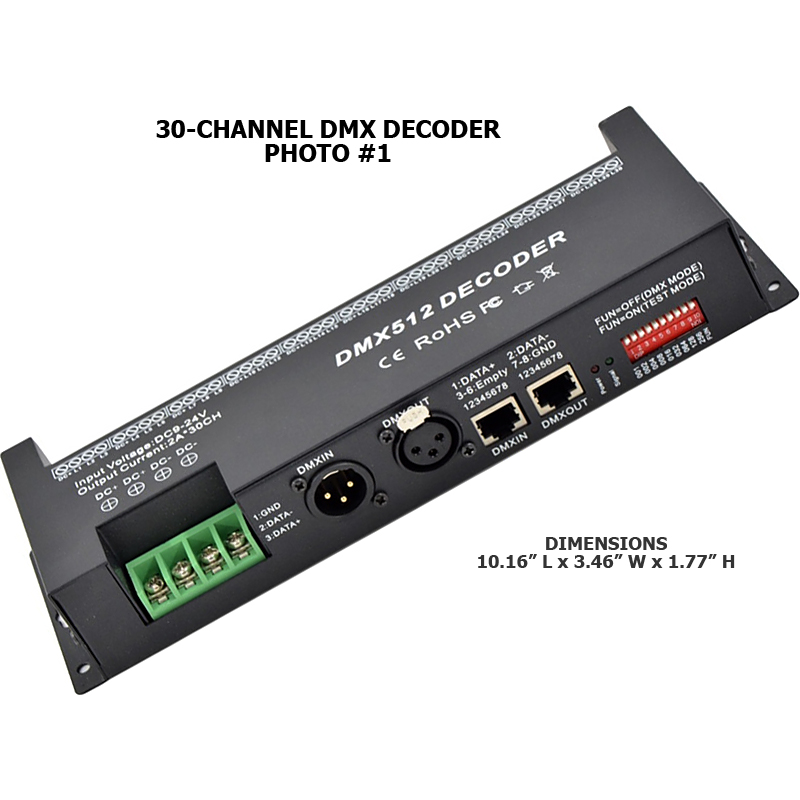

MAX RGB LED STRIP (TAPE) LIGHT LENGTHS (30-CHANNEL DECODER):
Please keep in mind that longer runs will require Signal Amplifier(s).
4.4 Watt Standard™ 12V RGB LED Tape Light: 164 total feet (16.4 feet per each 3 Channels) of RGB LED Strip (720W Max Total, or 72W Max per each 3 Channels).
4.4 Watt SuperChip 24V™ RGB LED Tape Light: 328 total feet (32.8 feet per each 3 Channels) of RGB LED Strip (1,440W Max Total, or 144W Max per each 3 Channels).
|
|
|
RGB SIGNAL AMPLIFIER: If you plan on running more than 16.5 feet of our Standard™ or 33 feet of SuperChip™ RGB LED Strip Light with this RGB Controller, you must use an RGB Signal Amplifier in between the run.
Click Here to see / order this RGB LED Signal Amplifier! |
|
|
WARRANTY: 1 year limited manufacturer’s warranty. |
|
|
|
