 SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS! |
 |
SPEC SHEET WITH INSTALLATION INSTRUCTIONS FOR THE 60W 12VDC MODEL (PDF):
|
|
SPEC SHEET WITH INSTALLATION INSTRUCTIONS FOR THE 60W 24VDC MODEL (PDF):
|
|
|
CLICK ON AN OPTION BELOW TO GO TO THAT TRANSFORMER!
|
|
|
|
|
PREMIUM DIMMABLE CLASS 2 CONSTANT VOLTAGE ELECTRONIC 12VDC OR 24VDC LED TRANSFORMER! WORKS WITH SINGLE COLOR OR COLOR-CHANGING RGB / RGB+W / RGB+WW+CW! CAN BE DIMMED ON PRIMARY SIDE (FOR SINGLE COLOR LED’S)! ASSEMBLED IN THE USA! INDOOR OR OUTDOOR USE! IP67 RATED!
60 Watt 100-130VAC to 12VDC or 24VDC Premium Commercial Grade Dimmable Electronic Class II Step-Down Transformer (Driver). Designed for many years of service and comes with a Ten (10) Year Manufactuer’s Warranty! A perfect solution for LED applications, this mini DC (Direct Current) transformer features self (automatic) Primary and Secondary reset breakers and is Dimmable with any Electronic Low Voltage, Magnetic Low Voltage, CL (LED / CFL) or Reverse Phase Dimmers from the Primary side! Features include high efficiency, excellent load regulation and no wattage de-rating under 100% load. Best of all, there is only a 5% (3 watt) minimum load requirement for this transformer, meaning your lights will turn on even when very little wattage is being pulled!
This transformer comes standard with a hardwire lead, but you can order a plug-in cord optionally if you wish to plug it into a standard 3-prong receptacle.
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS LED DC ELECTRONIC CLASS 2 TRANSFORMER |
|
|
TRANSFORMER TYPE: Class 2 Electronic Dimmable.
|
|
|
INPUT VOLTAGE: 120 Volts AC (standard "line" voltage).
|
|
|
OUTPUT VOLTAGE: 12 Volts DC or 24 Volts DC (select either 12VDC or 24VDC when ordering).
|
|
|
MAXIMUM LOAD: 60 Watts.
|
|
|
MINIMUM LOAD: 3 Watts.
|
|
|

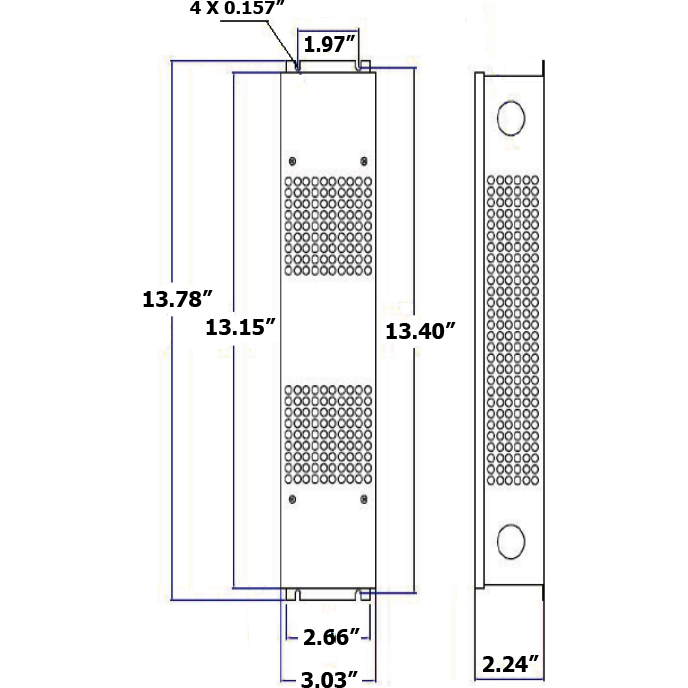

DIMENSIONS: 13.78" Overall Length x 3.03" Overall Width x 2.24" Overall Depth
|
|
DIMMING: Dimmable with any EV, MLV, CL, forward or reverse phase dimmer.
|
|
|
ENCLOSURE (CASING): Comes as shown with with a Black Powdercoated Aluminum enclosure. The enclosure has a wiring compartment with 4 knockouts for 3/8" screw cable connectors. IP67 Rated for indoor or outdoor dry or wet location use!
|
|
|
PLUG-IN CORD OPTION: This transformer comes included with a standard hardware lead. We offer an optional plug-in cord which will allow you to plug this transformer directly into any standard 3-prong USA receptacle.
|
|
|
MAX OUTPUT CURRENT:
12VDC MODEL: 5.0A
24VDC MODEL: 2.5A
|
|
|

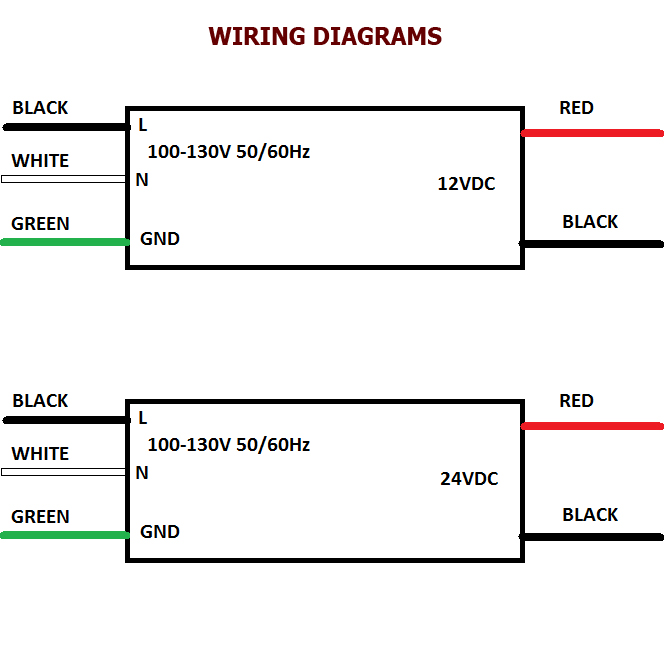

INPUT LEADS: 18 AWG 600V
|
|
|
OUTPUT LEADS: 18 AWG 300V
|
|
|
WIRING COMPARTMENT: The wiring compartment has 4 knockouts for 3/8" screw cable connectors.
|
|
|
CERTIFICATIONS (LISTINGS): This transformer is ETL Listed for dry, damp or wet location use (when ordered with outdoor wet location use), conforms to UL Standard 1310, and is also certified to CSA Standard C22.2 №. 107.1 (12VDC model) & 223 (24VDC model).
|
|
|
WARRANTY: Ten (10) year manufacturer’s warranty from date of delivery.
|
|
|
|
