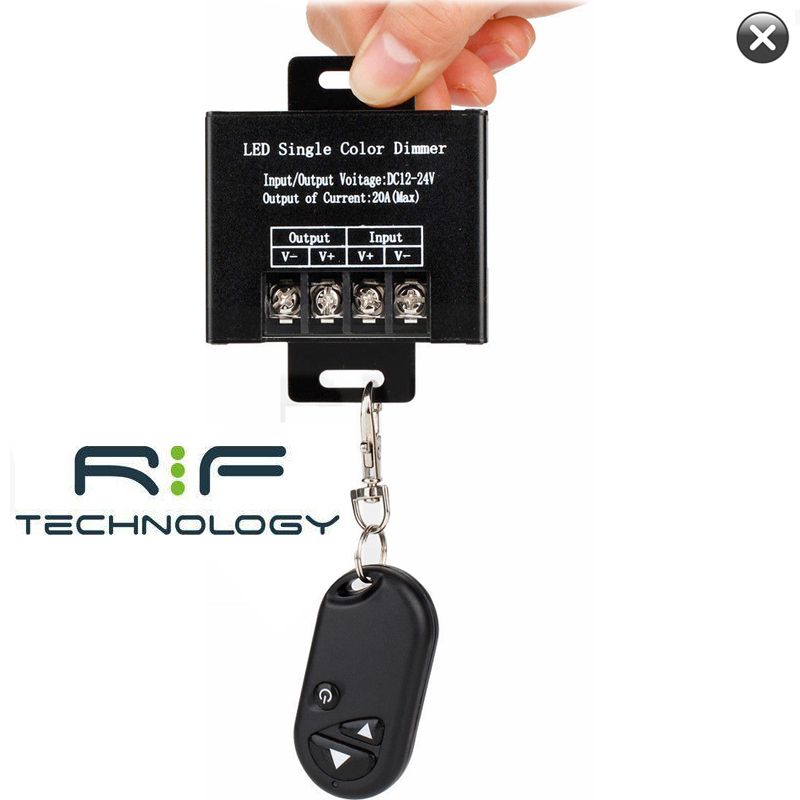

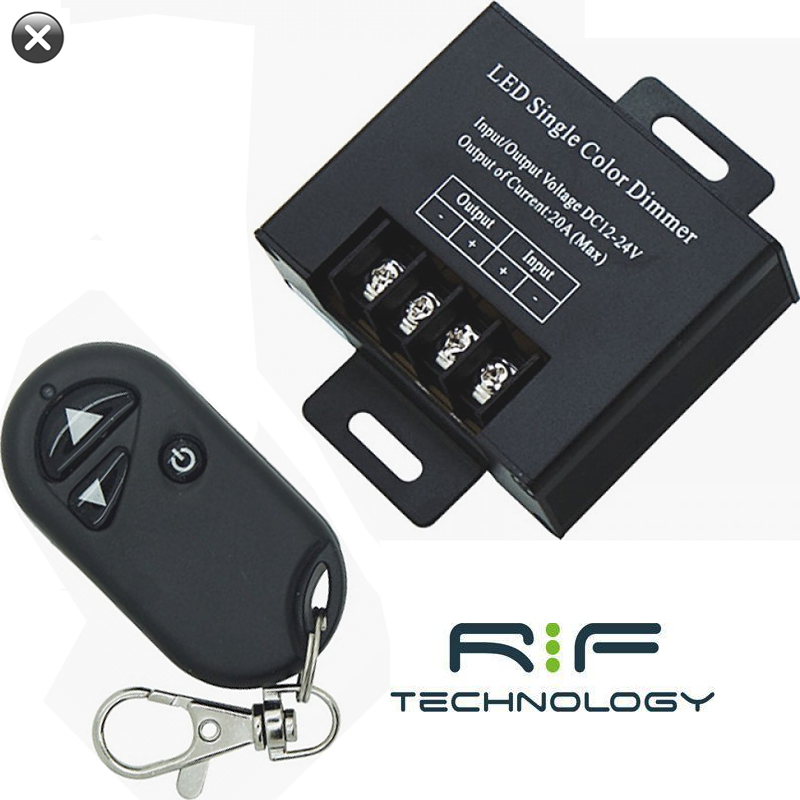

LED In-Line PWM Dimmer, Dims Up to 328 Feet, W/ Mini Extended Range Remote

$39.99

SKU: TLDF4

In Stock

INFO AND SPECS FOR THIS LED PWM DIMMER SHOWN BELOW.

DIM UP TO 328 FEET OF SINGLE COLOR LED STRIP LIGHT WITH THIS DIMMER!*
In-Line PWM High Output LED Strip Light Dimmer with Extended Range Remote and on/off functionality for Single Color LED Lighting. Not for use with RGB LED tape lighting or 120V LED lighting. Connects the end of our Low Voltage Standard (12V) or SuperChip™ (24V) Single Color LED Tape Light to a Low Voltage DC Transformer (will NOT work with AC transformers).

The included Extended Range (RF) Remote Control works up to 50 Feet away, and allows you to dim from 100% – 0%, as well as turn your LED Tape Light on or off. Connects to the secondary side of your LED Low Voltage DC Driver (Transformer).

ADDITIONAL INFORMATION FOR THIS LED PWM DIMMER BELOW

	MAX LED STRIP (TAPE) LIGHT LENGTHS: This LED PWM Dimmer can handle the max lengths of Single Color LED Strip Light as shown below. Please keep in mind that longer runs will require Signal Amplifier(s). 1.5 Watt Standard (12V) Single Color LED Tape Light: 164 feet (240W Max) 1.5 Watt SuperChip™ (24V) Single Color LED Tape Light: 328 feet (480W Max) 2.2 Watt Standard (12V) Single Color LED Tape Light: 109 feet (240W Max) 2.2 Watt SuperChip™ (24V) Single Color LED Tape Light: 218 feet (480W Max) 3.0 Watt Standard (12V) Single Color LED Tape Light: 82 feet (240W Max) 3.0 Watt SuperChip™ (24V) Single Color LED Tape Light: 164 feet (480W Max) 4.4 Watt Standard (12V) Single Color LED Tape Light: 54 feet (240W Max) 4.4 Watt SuperChip™ (24V) Single Color LED Tape Light: 109 feet (480W Max) 6.0 Watt SuperChip™ (24V) Single Color LED Tape Light: 82 feet (480W Max) 8.8 Watt Standard (12V) Single Color LED Tape Light: 27 feet (240W Max) 8.8 Watt SuperChip™ (24V) Single Color LED Tape Light: 54 feet (480W Max)

	DIMENSIONS: 3.2" Length x 2.52" Width x 0.93" Depth (Thick) (LED Dimmer Box) 2.26" Length x 1.16" Width x 0.46" Depth (Thick) (Remote Control)


	INSTALLATION: Simply connect to the 12V or 24V (secondary) side of your LED power supply (transformer), then connect to the low voltage LED Lighting you wish to dim. Comes with mounting plates on the top and bottom of the dimmer, allowing for easy surface mounting on most surfaces.

	WARRANTY: 1 year limited manufacturer’s warranty.
