SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS FIXTURE!
SPECIFICATION SHEET (PDF):
INSTALLATION GUIDE (PDF):

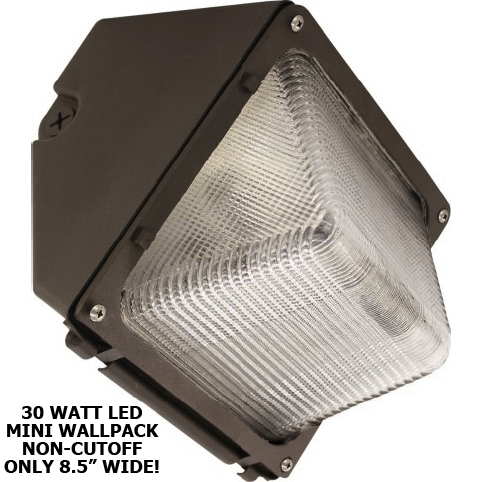

30 Watt Commercial LED Premium Ultra Mini Non-Cutoff Wall Pack with Semi-Cutoff Hood option. Replaces 100-120 Watt HID Fixtures while consuming at least 70% less electricity! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years!

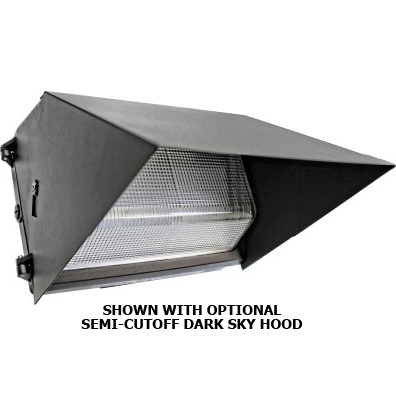

SEMI-CUTOFF HOOD OPTION (DARK SKY COMPLIANT): These LED Wall Packs come standard with no hood. Optionally, you can order a semi-cutoff glare reducing hood (as shown above). This fixture is Dark Sky Compliant when used with the optional hood.
PHOTOCELL & MOTION SENSOR OPTIONS:
These LED Wall Packs are available with an optional dawn-to-dusk photocell as well as an optional Motion Sensor, which attaches to one of the 1/2" Knockouts on the fixture. For exact motion sensor and/or photocell specifications, please call us!

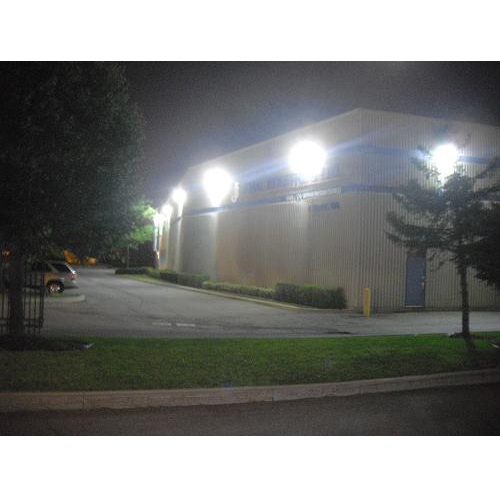

General illumination for building facades, parking areas, walkways, garages, loading areas and any other space requiring reliable safety and security. Enhances security due to LED’s superb color-rendering, making camera recordings much more clear and vivid!
ADDITIONAL SPECIFICATIONS FOR THESE LED WALLPACKS BELOW
INPUT VOLTAGES AVAIABLE: 120VAC ~ 277VAC is standard. For other voltages such as 347VAC or 480VAC, please call us.
LIGHT COLOR OUTPUTS AVAILABLE: These LED Wall Packs are available with light color outputs of 5000K Cool White (standard), 4000K Pure White or 3000K Warm White. 5000K and 4000K is recommended for commercial and security applications where highest brightness is most important, while 4000K and 3000K is recommended for retail and residential applications, offering a warmer white light. See the light color example photos above.
LIGHT DISTRIBUTION: 95° wide non-cutoff beam spread, offering maximum useful lumen output with little to no light loss!
CRI: >80. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
LED RATED LIFE: 100,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 25 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for nearly 9 years!!!
DIMMING: These fixtures are not dimmable.
INSTALLATION & MOUNTING: Includes all necessary hardware for surface wall mounting.
WARRANTY: 7 Year Manufacturer’s Warranty.
ESTIMATED ENERGY COSTS OF A 120 WATT HID WALLPACK – 10 YEAR PERIOD: $876.00* per fixture
ESTIMATED ENERGY COSTS OF THIS 30 WATT LED WALLPACK – 10 YEAR PERIOD: $219.00* per fixture
ESTIMATED SAVINGS USING THIS LED WALLPACK – 10 YEAR PERIOD: $1,958.00* Not including any rebates by your local power company! *Estimated energy costs are estimated with fixtures running 10 hours per day, 365 days per year at $0.20 Per KWh. Your actual savings will vary based on amount of use and KWh pricing in your area.
