PREMIUM DIMMABLE 12VDC OR 24VDC LED TRANSFORMER – ASSEMBLED IN THE USA!
AVAILABLE WITH A BLACK OR STAINLESS STEEL HOUSING (ENCLOSURE)!

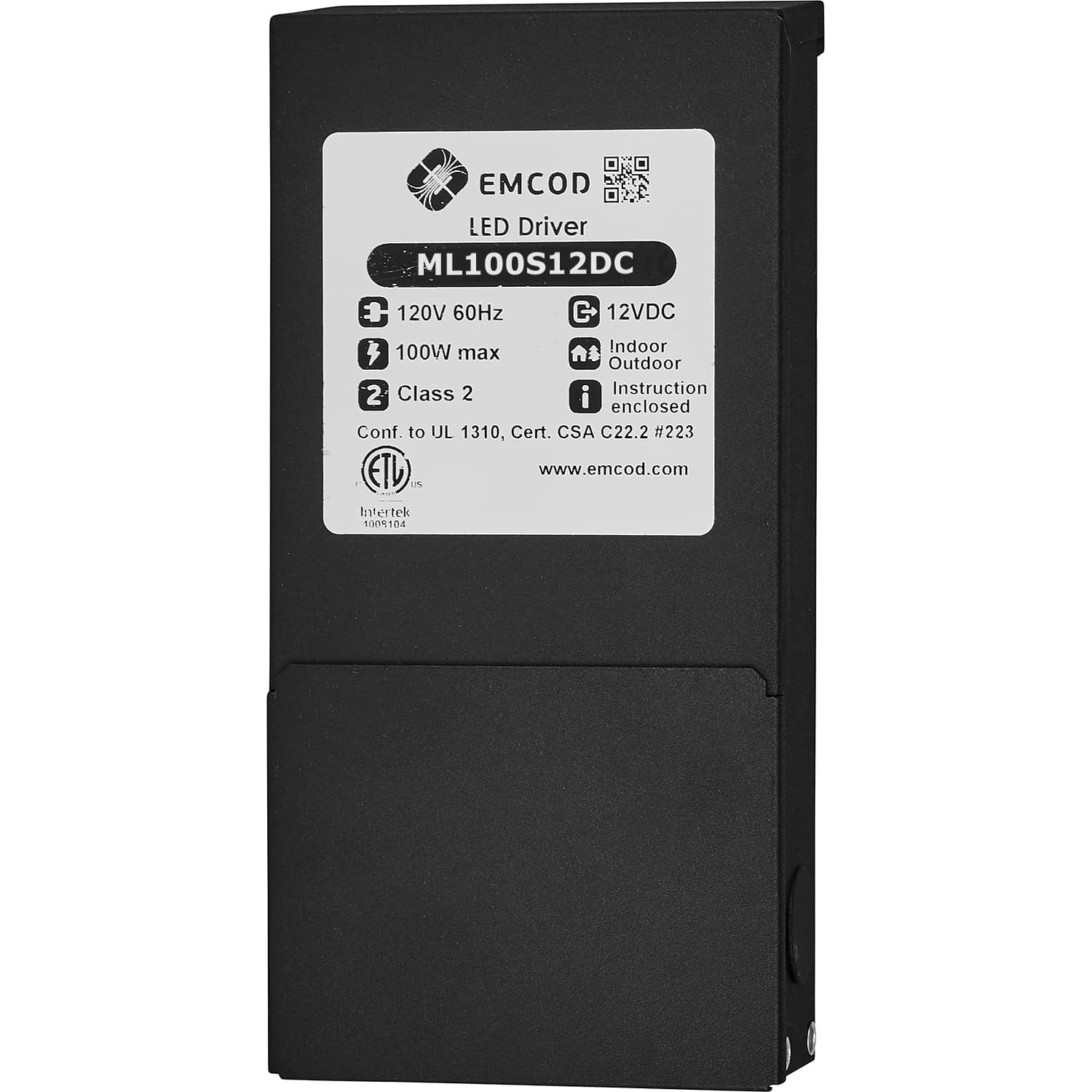

100 Watt 120VAC to 12VDC or 24VDC Premium Commercial Grade Dimmable Magnetic Step-Down Transformer (Driver). Designed for many years of service and comes with a Ten (10) Year Manufacturer’s Warranty! A perfect solution for LED applications, this mini DC (Direct Current) transformer features self (automatic) Primary and Secondary reset breakers and is Dimmable with any low-voltage magnetic dimmer from the primary side! Features include high efficiency, excellent load regulation and no wattage de-rating under 100% load. Best of all, there is no minimum load requirements for this transformer, meaning your lights will turn on regardless of how little wattage is being pulled!
This transformer comes standard with a hardwire lead, but you can order a plug-in cord optionally if you wish to plug it into a standard 3-prong receptacle. Features automatic (self) reset breakers on both the primary and secondary sides, and is designed for easy installation. This transformer is designed for output loads up to 100 watts.
- TRANSFORMER TYPE: Class 2 Magnetic Dimmable* (*on the primary side with a low voltage magnetic dimmer).
- INPUT VOLTAGE: 120 Volts AC (standard “line” voltage). Can be used with 110VAC to 130VAC input voltages.
- OUTPUT VOLTAGES: 12 VDC or 24 VDC (select either 12VDC or 24VDC when ordering)!
- MAXIMUM LOAD: 100 Watts. 8.33 Amps @ 12VDC; 4.17 Amps @ 24VDC.
- MINIMUM LOAD: >0.1 Watts, or virtually no minimum load to function!
- DIMENSIONS: 8.13″ Overall Height x 3.93″ Overall Width x 1.59″ Overall Depth.
- ENCLOSURE (CASING): Comes standard in a Black Powder Coated Steel Enclosure. Stainless Steel Enclosure optional, see options above. Enclosures are NEMA 3R Rated for Outdoor Use with outdoor use option (see above).
- PLUG-IN CORD OPTION: This transformer comes included with a standard hardware lead. We offer an optional plug-in cord which will allow you to plug this transformer directly into any standard 3-prong USA receptacle.
- WIRING COMPARTMENT: The Wiring compartment has 6 knockouts for 3/8 inch screw cable.
- CERTIFICATIONS (LISTINGS): This transformer is ETL Listed for dry, damp or wet location use (when ordered with outdoor wet location use), conforms to UL Standard 1310, and is also CSA certified. ETL File # 4008104.
- WARRANTY: Ten (10) year manufacturer’s warranty from date of delivery.
