- SPOOL LENGTH: 16.4 or 32.8 Feet, 0.32″ Wide.
- CUTTING INCREMENTS (12VDC): Every 2″ (every 3 LED’s).
- CUTTING INCREMENTS (24VDC): Every 4″ (every 6 LED’s).
- INPUT VOLTAGE: Your choice of 12VDC or 24 VDC Low Voltage.
- POWER CONSUMPTION: 24W per 16.4 feet (Approx. 1.5W/Foot).
- MAX RUN LENGTH: 49.2 feet for 12VDC, 98.5 feet for 24VDC.
- # OF LED’S: 300 LED’s per 16.4 feet (Approx. 18 LED’s per foot).
- LIGHT DISTRIBUTION: 120° Wide Flood beam angle.
- DIMMING: Dimmable on secondary side with an in-line PWM dimmer, or dimmable on primary side with a low voltage magnetic dimmer (must use magnetic transformer).
- INSTALLATION & MOUNTING: Mounts using two sided tape on back. Can also be used with our mounting channels.
- LUMENS PER FOOT: 90 Lm/Foot (White), 48 Lm/Foot (Red, Green, Yellow, Amber), 36 Lm/Foot (Blue).
- USE: Indoor (standard), Outdoor (optional) or submersible (optional).
- WARRANTY: Two (2) year limited warranty from date of delivery. Warranty void if strip light is cut.

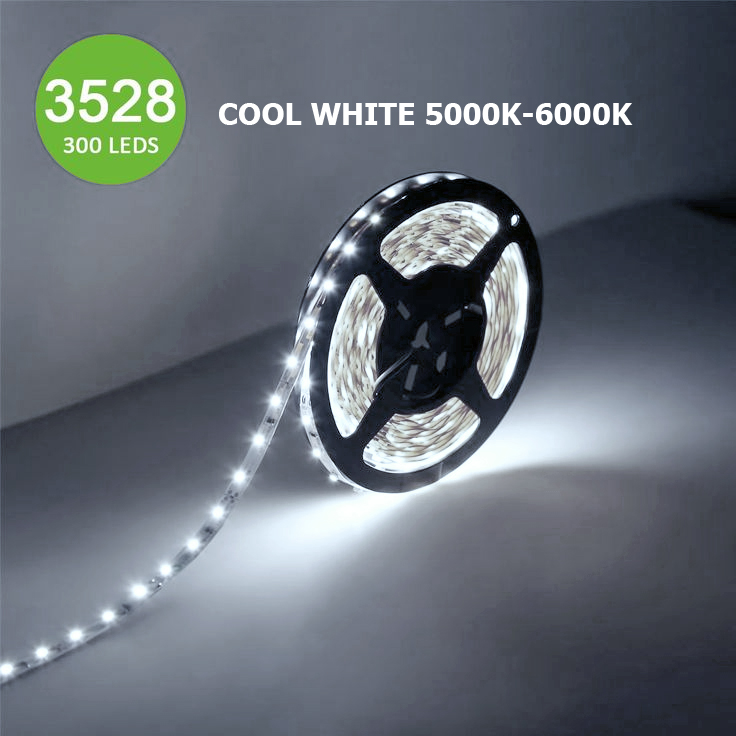

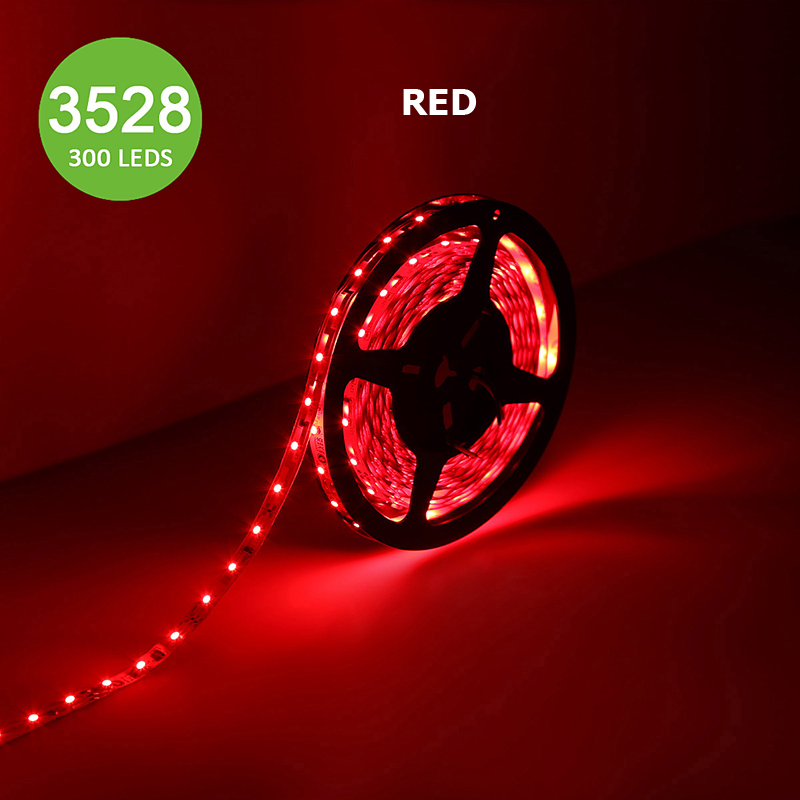

Bright, vivid and fully flexible 12VDC or 24VDC 16.4 or 32.8 Foot Single Color LED Tape Light Spool. Uses 1.5 Watts Per Foot or 24 Watts Per 16.4 Feet. You can run up to 49.2 Feet on a single 12VDC run. You can run up to 98.5 Feet on a single 24VDC run!
FEATURES & BENEFITS:
Flexible and ultra-thin (only 0.1″ thick x 0.32″ Wide), and produces a even light. Field cuttable every 3 LED’s (about every 2″) for 12VDC and every 6 LED’s (about every 4″), which allows for installation flexibility and the ability to cover odd-sized areas. Long life span of at least 50,000 hours means you can install it and forget about it for many years! Installs easily using supplied 3M tape on the back. Simply peel it like tape and stick it wherever you want! We also offer mounting channel options for a more professional look, see the accessories tab. Produces no UV light making it perfect for UV sensitive areas such as artwork, etc. Also produces very little heat, making it perfect for heat-sensitive areas!
RECOMMENDED APPLICATIONS:
Decorative lighting (cove lighting, back lighting) for homes, hotels, stores, yachts, bars, automobiles etc.; Guidance Lighting for cinemas, theatres, yachts , trains to guide people; Channel letter lighting for your stores, restaurants, bars, etc… The possibilities are nearly endless!
