- SPOOL LENGTH: 16.4 Feet, 0.48″ Wide.
- INPUT VOLTAGE: Your choice of 12VDC or 24 VDC Low Voltage.
- CUTTING INCREMENTS (12VDC): Every 2″ (every 3 LED’s).
- CUTTING INCREMENTS (24VDC): Every 4″ (every 6 LED’s).
- RGB+WW TO CW COLOR-CHANGING CONTROL: Requires Controller (not included).
- POWER CONSUMPTION: 5.12 Watts Per Foot, 84 Watts per spool.
- MAX RUN LENGTH: 16.4 feet for 12VDC, 32.8 feet for 24VDC.
- # OF LED’S: 300 LED’s per 16.4 feet (Approx. 18 LED’s per foot).
- LIGHT DISTRIBUTION: 120° Wide Flood.
- DIMMING: Dimmable with color-changing controller.
- INSTALLATION & MOUNTING: Mounts using two sided tape on back. Can also be used with our mounting channels.
- LUMENS PER FOOT: Up to 300 Lumens per foot (in White). Lumens will vary depending on color selected with your controller.
- USE: Indoor (standard), Outdoor (optional) or submersible (optional).
- WARRANTY: Two (2) year limited warranty from date of delivery. Warranty void if strip light is cut.

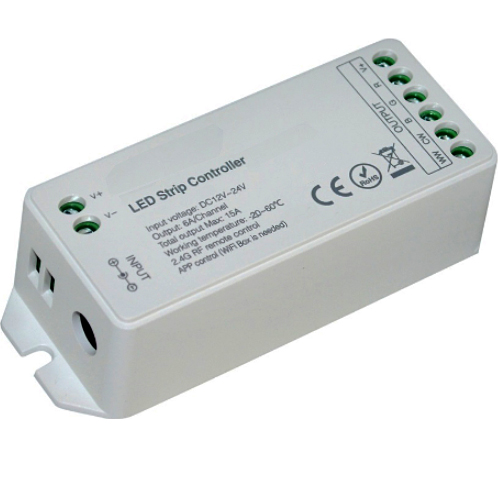

Bright, vivid and fully flexible SuperChip 12V or 24V Color-Changing RGB+White CCT (2700K~6500K) LED Strip Light. Uses 5.2 Watts Per Foot. Our Superchip Series 12V/24V RGB+WW-CW CCT LED Tape Light Strip is designed to change multiple colors and patterns (Flash, Strobe, Fade, Smooth, Dimming, etc.) using our controller (required) and can change from many shades of Reds, Greens, Blues, and can also change from Warm White All the way to Cool White (2700K to 6500K) if desired! For much more advanced operation, this LED Strip Light can be connected to a DMX512 Controller using a DMX512 Decoder (see our accessories section). Requires a 12VDC or a 24VDC LED Transformer (Driver) / power source, Zone Control Box(es) and an RGB+WHITE Superchip LED Remote or Wi-Fi Controller.
FEATURES & BENEFITS:
Flexible and ultra-thin (only 0.1″ thick x 0.48″ Wide), and produces a very even light (little to no “hot spots” unlike Rope Light). Field cuttable every 3 LED’s in 12 Volt or every 6 LED’s in 24 Volt, which allows for installation flexibility and the ability to cover odd-sized areas. Long life span of at least 50,000 hours means you can install it and forget about it for at least 10 years! Installs easily using supplied 3M tape on the back. Simply peel it like tape and stick it wherever you want! We also offer mounting channel options for a more professional look, see above accessories link. Produces no UV light making it perfect for UV sensitive areas such as artwork, etc. Also produces very little heat, making it perfect for heat-sensitive areas!
RECOMMENDED APPLICATIONS:
Decorative lighting (cove lighting, back lighting) for homes, hotels, stores, yachts, bars, automobiles etc.; Guidance Lighting for cinemas, theatres, yachts , trains to guide people; Channel letter lighting for your stores, restaurants, bars, etc… The possibilities are nearly endless!
