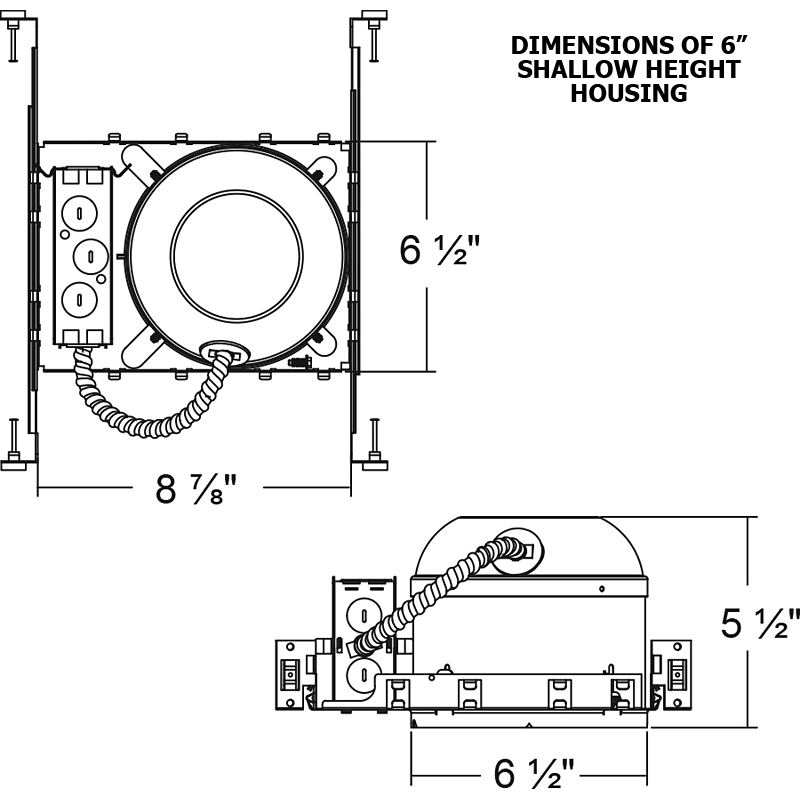

IC RATED – FOR 6" RECESSED LED MODULES / RETROFITS – SHALLOW 5.5" HEIGHT!
SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS
6" LED NEW CONSTRUCTION RECESSED HOUSING. MEETS NEWEST CA TITLE 24 REQUIREMENTS!
6" 120V or 277V LED Shallow Height (5.5") New Construction Retrofit Ready Recessed Housing (Can). Comes fully AIR-TIGHT. IC Rated for direct contact with insulation. Comes with adjustable Bar Hangers, Halo Compatible. Thermally protected, specification grade recessed housing. This retrofit-ready LED housing is engineered with a easy connect wiring system which are designed to be used with our 6" LED recessed module kits. 6" LED Recessed Module is not included and must be ordered separately. Meets California Title 24 "No Edison Socket" standards as well as any state that has banned use of Edison based sockets. The easy connect system allows for simple installation… install a module in seconds, virtually eliminating mis-wiring and potential shock hazards! Contains one 1-1/8", six 7/8" knockouts and four Romex pryouts with strain relief.
ADDITIONAL FEATURES AND SPECIFICATIONS FOR THESE 6″ LED HOUSINGS
HOUSING: High-temperature 22-gauge galvanized steel, deep drawn single piece housing. The housing can be removed from plaster frame to provide access to the junction box. Housing is IC rated for direct contact with insulation and can be used in IC and NON-IC applications.
CONNECTION: Polarity-specific easy connect system engineered to match with all of our 6" LED integrated retrofit modules. Meets strict code requirements where Edison Base Sockets have been banned (Such as California, Washington State, etc). Click Here to see all of our 6" LED Retrofit Modules!
BAR HANGERS: Bar hangers are adjustable from 13-5/8" to 25" and can be repositioned 90° on the plaster frame. They contain a double-headed real nail for secure attachment into the joist.
JUNCTION BOX: UL Listed for through-branch circuit wiring, provided with one 1-1/8", six 7/8" knockouts and four Romex pryouts with strain relief.
THERMAL PROTECTOR: Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
LISTINGS: cUL Listed for Damp Location; cUL Listed for Feed Through; Certified under ASTM-E283 for Air Tight construction; Meets California title 24 requirements.
WARRANTY: 10 year warranty on the housing. LED retrofit module trims (not included) are typically warrantied for a period of five (5) years. Please see warranty information on the retrofit module trim you are purchasing for more info.
