INFO AND SPECS FOR THIS LED TRANSFORMER (DRIVER) SHOWN BELOW.
FOR USE WITH OUR CODE #’S UA106, UA112, UA120, UA132, UA140, UA206, UA212, UA220, UA232 & UA240 24V LED LIGHT BARS.

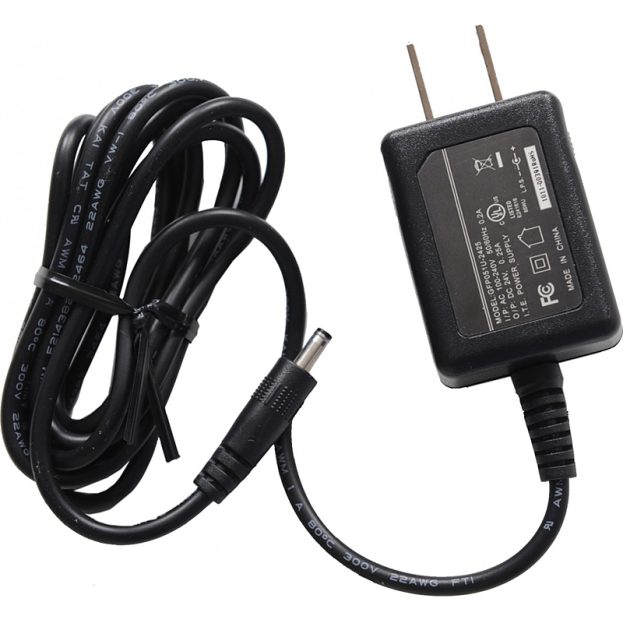

6 Watt Max 120VAC to 12VDC or 24VDC LED EZ Electronic Low Voltage Transformer (Driver). Used to power our 12V or 24V Sleek Linkable Undercabinet Light Bars. Connects in seconds with its EZ connector just like a laptop! Scroll down below to see max # of led light bars that can be used on this LED Transformer.
This Electronic DC Transformer can be dimmed on the secondary side ONLY using our Model #’s UADM1 or UADM2 specialty in-line DC dimmers. If you wish to use a wall dimmer (such as Lutron, etc.) to dim the primary side, do not use this transformer! Please go back to see our premium Magnetic DC LED Transformers as they can be dimmed from the primary side with almost any Magnetic low voltage wall Transformer!
ADDITIONAL INFORMATION FOR THIS 24VDC LED TRANSFORMER BELOW
OUTPUT VOLTAGE: 12VDC or 24VDC Low Voltage.
MAXIMUM # OF LED SLEEK LIGHT BARS: This LED Transformer (Driver) can run a maximum of our 12V / 24V LED Sleek Linkable Undercabinet light bars below: Three (3) of our 6" 1.8 Watt Light Bars (#UA106 or #UA206) Two (2) of our 12" 3 Watt Light Bars (#UA112 or #UA212) One (1) of our 20" 5 Watt Light Bars (#UA124 or #UA224) One (1) of our 12" 3 Watt and One (1) of our 6" 1.8 Watt Light Bars
(#UA112 & #UA106 or UA212 & #UA206)
MAX POWER LOAD: 6 Watts. 0.5 Amps (12VDC) or 0.25 Amps (24VDC).
1-7/8" Length x 1-3/8" Width x 1/8" Depth (Thick).
INSTALLATION: CPlugs into any standard 110VAC – 130VAC outlet, and simply plugs into the 12VDC or 24VDC Sleek Linkable Undercabinet Light Bars just like a laptop would!
USE: Indoor or dry location rated only. If being used outdoors, this Transformer must be sealed and shielded / kept away from moisture.
