 PREMIUM SPEC-GRADE 6″ FULLY CUSTOMIZABLE LED RETROFIT KIT! MANY OPTIONS!
|
|
|
|
|
1,100 LUMENS! SPECIFICATION GRADE BUILT WITH CREE LED! AVAILABLE IN 120VVAC, 208~277VAC OR 347VAC! AVAILABLE IN 2700K, 3000K, 3500K & 4000K WITH MULTIPLE REFLECTOR & TRIM RING OPTIONS! NOW 93 CRI, HIGHEST IN THE LED INDUSTRY!!! EXCEEDS NEWEST CA TITLE 24 REQUIREMENTS! WET OR DRY LOCATION RATED… CAN BE USED IN SHOWERS!
6″ 120VAC, 277VAC, 347VAC LED 17 Watt Dimmable Integrated Recessed Decora 1100 Series Spec Grade Retrofit Kit with Reflector Trim. Comes with everything you need for an EZ install into your existing 6″ 120VAC or 277VAC Halo-Compatible Recessed Housing or our LED Housings… These will fit in almost ANY 6″ recessed housing out there!Are you sick and tired of seeing those same, boring white plastic looking LED retrofits you’ve seen everywhere else? Well so are we! That’s why we have finally developed our exclusive line of 6″ fully integrated LED retrofit kits that will not only give you huge savings and bright, beautiful light, but will add beauty and value to any residential, commercial or retail applications.. so why settle for boring! You definitely won’t find these spec grade premiumretrofit kits at your local Home Depot, Lowe’s, etc!

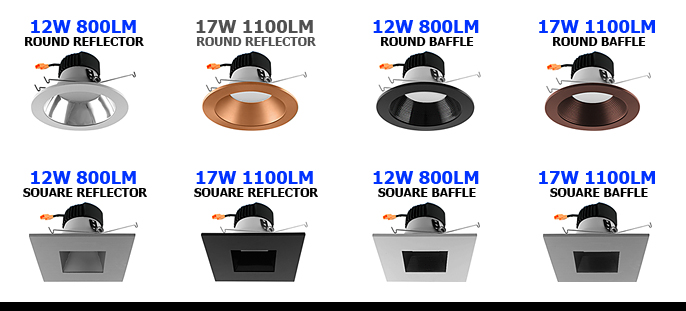

With these kits, you can select from many different Reflector and Trim Ring options (see color options below). Using only 17 Watts of power with state of the art Premium CREE LED Diodes, these retrofit kits are comparable to 100+ Watts of Halogen light and puts out a whopping 1,100 Lumens! This Retrofit kit comes complete with everything you need for EZ installation into your existing 6″ 120V, 208~277V or 347V Halo-Compatible Recessed Housing.
Light output is available in 2700K Very Warm White, 3000K Warm White, 3500K Semi-Warm White and 4000K Pure White. With a 78° Beam Spread, this LED Retrofit Kit delivers smooth, even, clean light. Now with an industry-leading unprecidented CRI value of 93, these retrofits will deliver lighting so good, you’d swear you weren’t using LED! These retrofit kits are rated to last over 50,000 hours, or 10-30 years depending on usage! This retrofit kit is fully dimmable and can be dimmed down to 5% with most standard 120V Line Voltage Dimmers, or down to 5% with select LED dimmers!
These retrofit kits offer “instant on” full brightness technology, i.e. no more “warm up” period you typically find with Compact Fluorescent! This retrofit kit is also is CSA (Equivalent to UL and ETL and will pass inspection) Listed for Dry, Damp or Wet Location use, are RoHS Compliant, Energy-Star Rated, JA8 Certified, and California Title 24 approved. Uses at least 80% less electricity than incandescant or halogen, is mercury free (safe for the environment) and emits no UV radiation unlike Compact Fluorescent, making it safer for you and any valuable paint or artwork! Go Smart, Go LED! |
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS 6″ DECORA SERIES LED RETROFIT |
|
 |
MATERIAL: Extruded Cast Aluminum housing, premium heavy duty aluminum heatsinks, metal reflector, metal trim ring, and frosted lens diffuser lens. Unlike many of the cheap units you might find at Home Depot, Lowe’s etc., this Retrofit Kit is all metal including the reflector trim!
|
|
|
VOLTAGE: 120VAC is standard. 208~277VAC or 347VAC (external drivers) are optionally available for $50.00 additional.
|
|
BEAM ANGLE: 78° Beam Angle mimics typical incandescent & halogen flood bulbs.
|
|
|
LIGHT COLOR OUTPUTS AVAILABLE: Available in 2700K Very Warm White (mimics incandescant), 3000K Warm White (mimics warm halogen), 3500K Semi-Warm White (mimics soft halogen), or 4000K Pure White (mimics fluorescent, or a pure white light).
|
|
|
CRI: >93! The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
DIMMING: Fully Dimmable from 100% – 5% with almost any standard 120VAC Triac Compatible Dimmer (standard). Dimming options include Standard Triac/ELV – 120V (standard for 120V). 0-10V dimming – 120-277V (standard for 277V). Lutron Hi-Lume 1% Ecosystem – 120-277V (call us). Lutron Hi-Lume 1% 3-wire – 120-277V (call us). Lutron Hi-Lume 1% Ecosystem with soft on, fade to black dimming – 120-277V. Hi-Lume 1% 2-wire – 120V (call us). eldoLED Eco 1% Dim 0-10V – 120-277V (call us). eldoLED Solo 0.1% Dim 0-10V, 120-277V (call us). eldoLED Solo 0.1% Dim DALI – 120-277V (call us).
|
|
|
COMPATIBILITY: Compatible with almost all (99%) of the standard 4″ housings (Halo, Capri, Juno, Commercial Electric, Utilitech, etc). If you are unsure if your housing is compatible, call us and we will confirm it for you!
|
|
|
INSTALLATION: Installs in minutes and easily “pops” into your existing housing. Torsion springs supplied for convenient mounting to existing remodel or new construction 6″ 120V housings. If ordered in 208~277V or 347V, an external driver is included, which you simply place in between the retrofit kit and the romex wire leading to the retrofit kit. Includes E26 Medium Screw-in Base Adapter. For California Title 24 “No Edison socket” compliance, simply cut off the screw base from the retrofit kit, cut off the socket from the housing to expose the wires.
|
|
|
ESTIMATED ANNUAL ENERGY COSTS USING A 100 WATT HALOGEN RECESSED LIGHT:
$58.40* per light
|
|
|
ESTIMATED ANNUAL ENERGY COSTS USING THIS 17 WATT LED RECESSED LIGHT:
$9.93* per light
|
|
|
ESTIMATED ANNUAL ENERGY COST SAVINGS USING LED: $48.47* Not including any rebates by your local power company! *Estimate assumes lights will be running 8 hours per day, 365 days a year @ $0.20 Per KWh. Savings will vary based on amount of use and KWh pricing in your area.
|
|
|
CERTIFICATIONS: CSA Listed for dry, damp or wet location (equivalent to UL or ETL), Energy Star Rated, California Title 24 Approved, JA-8 Compliant, CE & RoHS compliant.
|
|
|
WARRANTY: 5 Year manufacturer’s warranty from date of delivery against any defects. All units are tested for 24 hours straight before packaging, ensuring a defective ratio near 0%.
|
|
|
|
|
