 SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THIS FIXTURE! |
 |
SPECIFICATION SHEET (PDF):
|
|
|
|

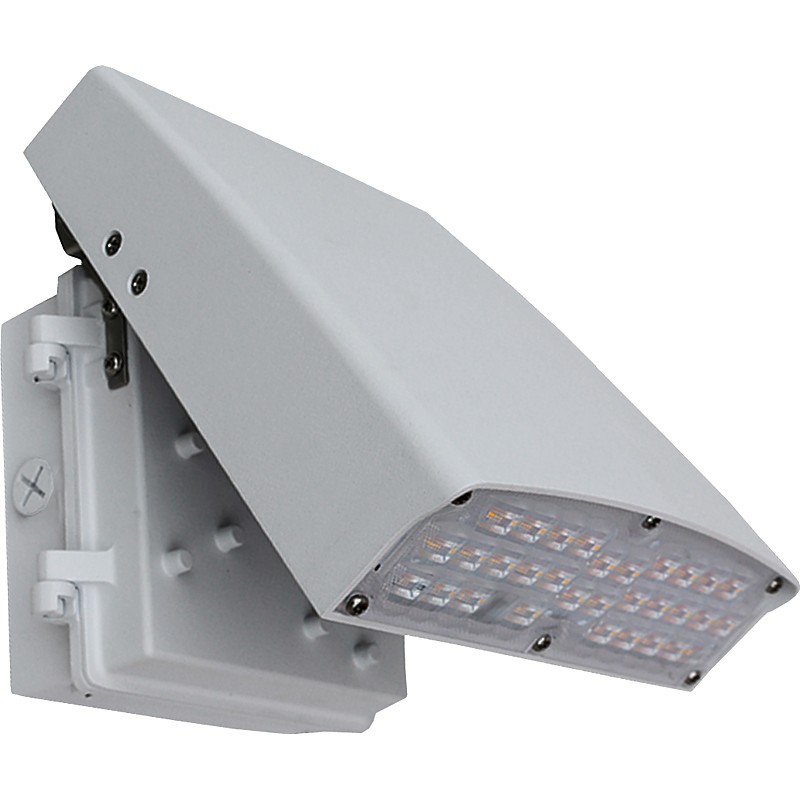

OUR NEWEST PREMIUM MINI FULL CUTOFF WALL PACKS! BRIGHTEST IN THE INDUSTRY AND CAN ADJUST FROM 0° to 90°, GIVING YOU FULL ADJUSTABILITY!!30 Watt Premium LED Small Sleek Full Cutoff Adjustable Wall Pack with 80° x 100° IES Type III Forward Throw Optics. Replaces 100-120 Watt HID fixtures while consuming at least 70% less electricity! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years!FULL CUTOFF, FORWARD THROW DESIGN (DARK SKY COMPLIANT):
This LED Full Cutoff Wall Pack is Dark Sky Compliant and directs the light where you want it, producing little to no light pollution! The Type III (80°x100°) forward throw optics shoots the light down and out, with no light wasted above!RECOMMENDED APPLICATIONS:
General illumination for building facades, parking areas, walkways, garages, loading areas and any other space requiring reliable safety and security with minimal light pollution. Enhances security due to LED’s superb color-rendering, making camera recordings much more clear and vivid!
|
|
|
| ADDITIONAL SPECIFICATIONS FOR THIS LED WALL PACK BELOW |
|
|
CONSTRUCTION: Die cast aluminum housing powdercoated in dark bronze (standard) or white (optional) with a high light transmittance, anti-UV and fire resistant polycarbonate lens.
|
|
|
INPUT VOLTAGES AVAILABLE: 120VAC ~ 277VAC. For other voltages not listed such as 347VAC or 480VAC, please call us.
|
|
|
LIGHT COLOR OUTPUT: These LED Wall Packs are available with light color outputs of 5000K Cool White (standard), 4000K Pure White (optional), or 3000K Warm White (optional). 5000K & 4000K are recommended for commercial and security applications where highest brightness is most important, while 4000K & 3000K is recommended for retail and residential applications, offering a warmer light. See the light color example photos above.
|
|
|
LIGHT DISTRIBUTION: These LED Sleek Full Cutoff Wall Packs offer a Type III 80° x 100° Forward Throw Beam Spread, offering maximum useful lumen output with little to no light loss! HID and CFL Wall Packs typically lose 50-70% of their lumens in wasted light shooting backwards into the fixture. With these LED Wall Packs, all of the available lumens are put into use, as no light shoots backwards from the source!
|
|
|
CRI: >80. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
LED RATED LIFE: 100,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 34 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for over 11 years!!!
|
|
|
DIMMING: This fixture is not dimmable.
|
|
|
INSTALLATION & MOUNTING: Includes all necessary hardware for surface wall mounting (standard). Trunnion Mount and 1/2″ NPT Knuckle Mount (in-ground / dirt mount) are optional. See above for info on these options!
|
|
|
ESTIMATED ENERGY COSTS OF A 120 WATT HID WALL PACK – 10 YEAR PERIOD:
$876.00* per fixture
|
|
|
ESTIMATED ENERGY COSTS OF THIS 30 WATT LED WALL PACK – 10 YEAR PERIOD:
$219.00* per fixture
|
|
|
ESTIMATED SAVINGS USING THIS LED WALL PACK – 10 YEAR PERIOD: $657.00* Not including any rebates by your local power company! *Estimated energy costs are estimated with fixtures running 10 hours per day, 365 days per year at $0.20 Per KWh. Your actual savings will vary based on amount of use and KWh pricing in your area.
|
|
|
|
