INFO AND SPECS FOR THIS LED TRANSFORMER (DRIVER) SHOWN BELOW.
RUN UP TO 200 FEET OF LED STRIP LIGHT WITH THIS LED STRIP / TAPE LIGHT DRIVER!*

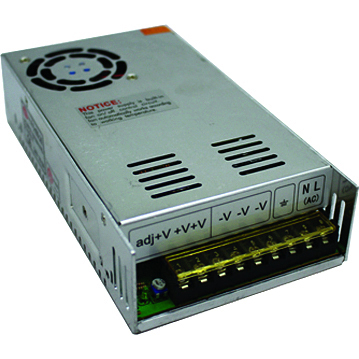

300 Watt Max 120VAC to 12VDC or 24VDC LED Electronic Low Voltage Transformer (Driver). Used to power low voltage LED lighting such as LED Strip / Tape Light. Scroll down below to see max footage of led strip / tape light that can be used on this LED Transformer. This LED low voltage DC transformer can also power up other low voltage LED lighting such as LED light bars, LED undercabinet lights, etc.
This Electronic DC Transformer can be dimmed on the secondary side ONLY using our specialty in-line DC dimmers. If you wish to use a wall dimmer (such as Lutron, etc.) to dim the primary side, do not use this transformer! Please go back to see our Magnetic DC LED Transformers as they can be dimmed from the primary side with almost any Magnetic low voltage wall Transformer! As always, if you wish to dim your LED lighting, we always highly recommend using a Magnetic DC low voltage Transformer! 12 Volt DC output is Standard, 24 Volt DC output is optional..
ADDITIONAL INFORMATION FOR THIS 12VDC OR 24VDC LED TRANSFORMER BELOW
FOR: 12VDC or 24VDC low voltage LED lighting. Typically used for low voltage LED Tape Light.
OUTPUT VOLTAGES AVAILABLE: 12VDC output is standard, 24VDC output is optional.
MAX LED STRIP (TAPE) LIGHT FOOTAGE: This LED Transformer (Driver) can handle max footage of LED Strip (Tape) Light as shown below. 1.5 Watt (12V or 24V) LED Strip / Tape Light: 200 feet max. 2.2 Watt (12V or 24V) LED Strip / Tape Light: 135 feet max. 3.0 Watt (12V or 24V) LED Strip / Tape Light: 100 feet max. 4.4 Watt (12V or 24V) LED Strip / Tape Light: 67 feet max. 6.0 Watt (12V or 24V) LED Strip / Tape Light: 50 feet max. 8.8 Watt (12V or 24V) LED Strip / Tape Light: 33 feet max.
MAX POWER LOAD: 25.0 Amps (300 Watts) for 12VDC, 12.5 Amps (300 Watts) for 24VDC.
8.43" Length x 4.45" Width x 1.93" Depth (Thick)
INSTALLATION: Can be hardwired using standard 120v romex wire to a switch, or you can also optionally order with a plug-in cord, which can be plugged into any standard outlet. The low voltage DC lighting (led strip, modules, etc.) connect to the secondary slots. See installation guide photo above.
USE: Indoor or dry location rated only. If being used outdoors, this Transformer be sealed and shielded / kept away from from moisture.
