SCROLL DOWN TO SEE ALL INFORMATION AND SPECIFICATIONS FOR THESE FIXTURES! |
NEW AND IMPROVED LED READY- MORE OPTIONS, LESS $$$!!! DIMMABLE AVAILABLE! |
|
|

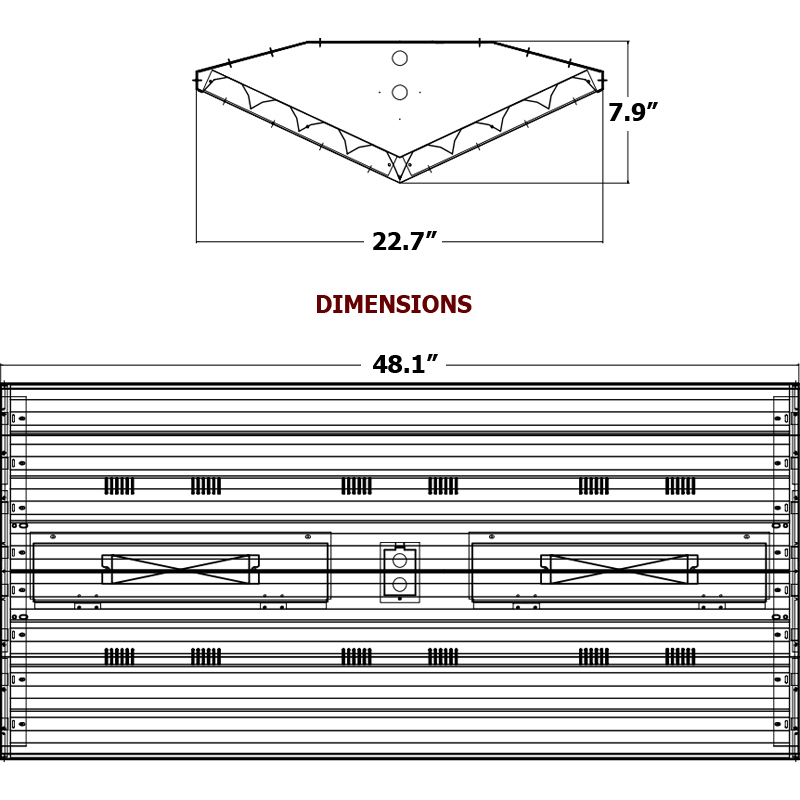

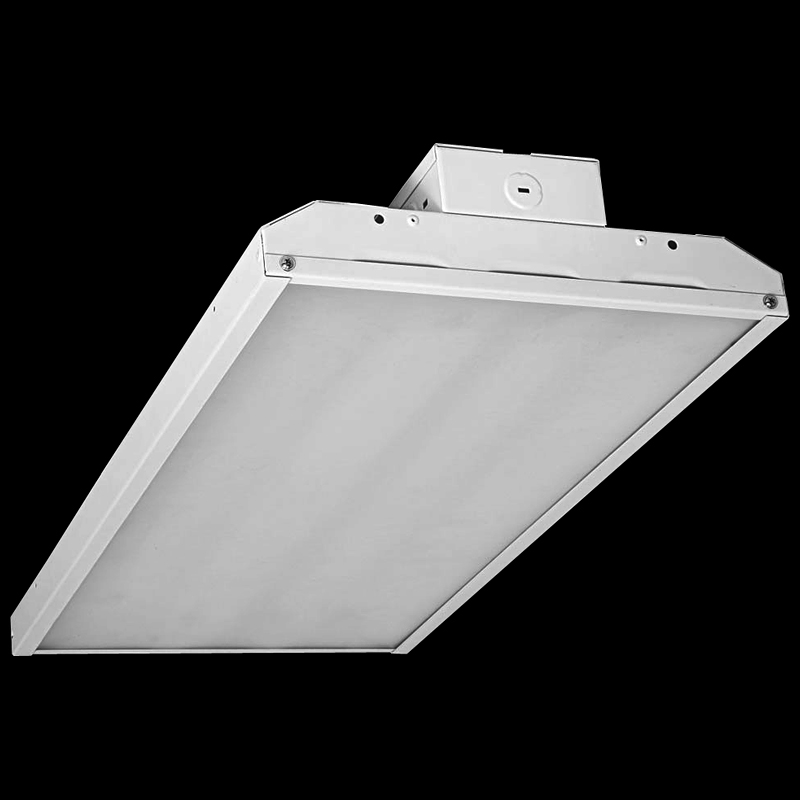

100, 144, 168 or 192 Watt 48″ x 23″ Diamond V Style Replaceable LED Commercial Linear High Bay Fixtures. Replaces 256-360+ Watt CFL fixtures while consuming at least 50% less electricity! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years! These LED Linear High Bays are especially perfect for hard-to-reach locations where re-lamping can be a costly (and dangerous) pain in the you know what! Go Smart. Go with our LED Linear High Bays!
RECOMMENDED APPLICATIONS:
General illumination for warehouses, docks, Large warehouse retail environments (i.e. Costco / Home Depot types of businesses, Gymnasiums, Hydroponics, etc.), Gymnasiums, Indoor Pools, etc. Rated for indoor use dry or damp locations. |
|
|
ADDITIONAL SPECIFICATIONS FOR THESE LED LINEAR HIGH BAYS BELOW |
|
|
CONSTRUCTION: Die formed 22 gauge cold rolled steel. All steel surfaces are painted after fabrication with high gloss baked enamel applied over iron phosphate pre-treatment for maximum adhesion and rust resistance.
|
|
|
REFLECTOR: Included 86% MIRO4 Aluminum high performance reflector maximizes light output.
|
|
|
INPUT VOLTAGES AVAILABLE: 100VAC to 277VAC. For other voltages, please call us.
|
|
|
LIGHT COLOR OUTPUTS AVAILABLE: Available in your choice of 3000K Warm White, 3500K Neutral White, 4000K Pure White, or 5000K Cool White. 5000K Cool / Daylight White light color is recommended for commercial / warehouse applications. 4000K Pure White or 3500K Neutral White is recommended for hospitality, office or retail applications. 3000K Warm White or 3500K Neutral White is recommended for residential applications, however some residential applications may want to use 4000K Pure White.
|
|
|
LIGHT DISTRIBUTION: This LED Linear High Bay offers a wide 180°+ Beam Spread, offering maximum useful lumen output with little to no light loss!
|
|
|
CRI: >83. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
|
|
|
LED RATED LIFE: 100,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 34 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for over 11 years!!!
|
|
|
DIMMING: Comes standard non-dimmable. Dimmable Optional (144W, 18,000 Lumens Only).
|
|
|
INSTALLATION & MOUNTING: Includes V-Hooks for hanging (suspended) ceiling mounting using standard Aircraft Cable (not supplied). You can use your existing cable (from existing fixtures you may already have), or simply pick up Aircraft Cable at any Home Depot, Lowe’s, etc.
|
|
|
CERTIFICATIONS (LISTINGS): UL & cUL Listed, DLC Approved* (*LED components), Rated for indoor dry or damp location use. NOT for use in wet locations. California Title 24 Approved, CE and RoHS Certified.
|
|
|
WARRANTY: 5 year limited manufacturer’s warranty.
|
|
|
|
