SPEC SHEET FOR THE OPTIONAL BI-LEVEL MICROWAVE MOTION SENSOR (PDF):CLICK HERE
SPEC SHEET FOR THE OPTIONAL EMERGENCY BATTERY BACKUP (PDF):CLICK HERE

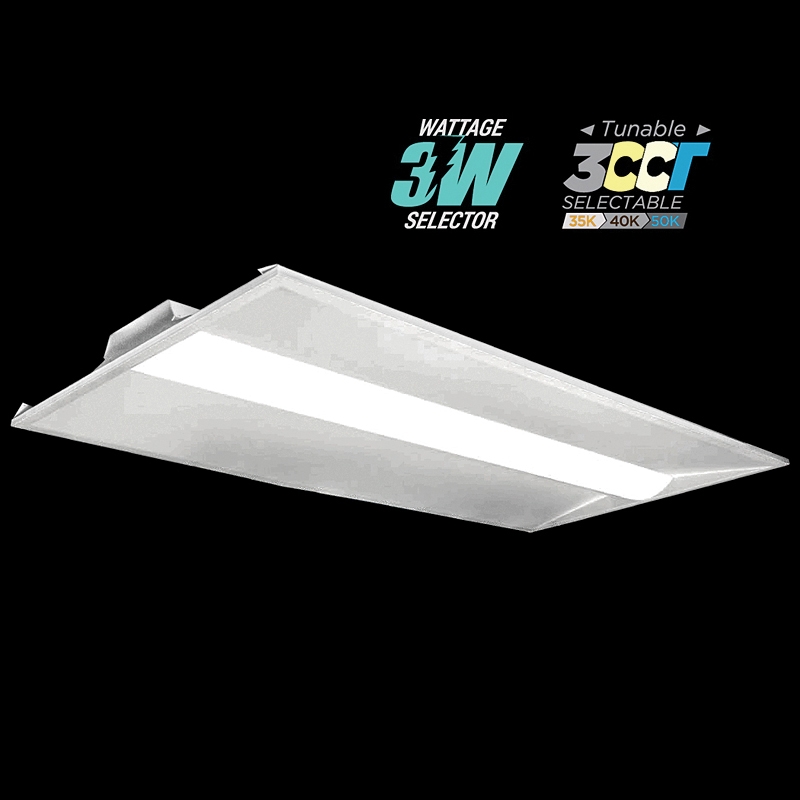

2X4 Size 50, 40 or 30 Watt Premium Pro Series LED Center Basket Troffer (Direct / Indirect). Replaces 64-128 Watt CFL fixtures while consuming at least 50% less electricity! Never change another bulb or ballast again! Just install these and forget about them for AT LEAST 10-20 years! These LED Flat Panels are especially perfect for hard-to-reach locations where re-lamping can be a costly (and dangerous) pain in the you know what! Go Smart. Go with our Value Series LED Flat Panels!
WHAT COLOR TEMPERATURE SHOULD I USE? HOW BRIGHT SHOULD MY LIGHTS BE? ORDER WORRY-FREE AND SET YOUR LUMEN OUTPUT AND COLOR TEMPERATURE ON THE JOB SITE! 5000K? Check. 4000K? Check. 3500K? Check. Change the lights to the color temperature you desire WITHOUT having to guess before ordering. Our revolutionary tuneable CCT technology makes ordering worry-free! You can set this LED center-basket troffer light to 50 Watts, 40 Watts or 30 Watts. Of course all wattages are fully 0-10V Dimmable so you can make the lights as bright as you want!
RECOMMENDED APPLICATIONS & MOUNTING OPTIONS: General indoor illumination for Office, Home, Retail, Hospitals, etc. Designed to lay recessed into an existing 2X4 Ceiling Panel and can also be recessed mounted into most ceilings. Surface mount kit for this fixture is also optionally available.
BELOW PHOTOS SHOW LED FIXTURES IN ACTION! CLICK ANY TO ENLARGE!
ADDITIONAL SPECIFICATIONS FOR THIS LED CENTER BASKET TROFFER BELOW
CONSTRUCTION:Die Cast Cold Rolled Steel Housing with high Strength Frosted Acrylic Lens Diffuser. Construction is one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire. All sides and corners are turned in and hemmed, removing sharp edges for safe handling and installation.
LIGHT DISTRIBUTION:This LED Center Basket Troffer offers a wide 160° Beam Spread, offering maximum useful lumen output with little to no light loss! CFL Troffers typically lose 50-70% of their lumens in wasted light shooting backwards into the fixture. With these LED Center Basket Troffers, all of the available lumens are put into use, as no light shoots backwards from the source!
INPUT VOLTAGES AVAILABLE:Designed to run on voltages ranging from 100VAC ~ 277VAC. Power Supply included will automatically determine voltage (if between these ranges). For other voltages such as 347VAC or 480VAC, please call us.
LED RATED LIFE:100,000+ Hours, meaning if you were to use these fixtures for 8 hours per day, 365 days per year, these LED fixtures will last you over 34 YEARS! To put this into perspective, if you were to run this fixture 24 hours a day, 365 days per year, it would stay lit for over 11 years!!!
CRI:>82. The higher the CRI (Color Rendering Index) rating, the better! CRI represents the amount of the spectrum used in the light output, i.e. the higher the value, the better the color clarity you will see from the light! LED doesn’t just save you money in energy costs, but it gives you a BETTER light versus Fluorescent. You will SEE the difference!
INSTALLATION & MOUNTING:Recess mounts (lays in) easily into an existing 2X4 Ceiling Panel, installing in minutes. Surface Mount Kit and recessed Flange Kit for Drywall applications optional.
CERTIFICATIONS (LISTINGS):ETL & cETL Listed, DLC Premium Listed, California Title 24 Approved, CE and RoHS Certified. Rated for indoor dry or damp location use.
WARRANTY:5 year manufacturer’s warranty from date of delivery.
