40 to 300 Watt Landscape Lighting Transformers With Timer & Photocell

$109.99

SKU: EPC40-300W

In Stock

Quantity:
x

Suggested Items...

Product Description

High Quality Landscape Lighting Transformers at an Unbelievable Price!
Includes both built-in Mechanical Timer and Photocell!
12VAC & 15VAC Multi-Taps make these transformers suitable for extra long runs!
Available in Black Powder Coated Steel or Stainless Steel!

40 Watt, 75 Watt, 100 Watt, 200 Watt or 300 Watt 120VAC to 12VAC ~ 15VAC Value Series Commercial Grade Dimmable Magnetic Step-Down Landscape Lighting Transformers (Drivers). Designed for many years of service and comes with a Five (5) Year Manufacturer’s Warranty! A perfect solution for LED landscape lighting fixtures that require far less power than their halogen counterparts, these outdoor transformers offer everything you will ever need! Dimmable with any low-voltage magnetic dimmer from the primary side! Includes a 6 foot plug-in cord which can be hard-wired to a switch by simply cutting off the plug-in end!



  • TRANSFORMER TYPE: Class 2 Magnetic Dimmable.
  • INPUT VOLTAGE: 120 Volts AC (standard “line” voltage). Can be used with 110VAC to 130VAC input voltages.
  • OUTPUT VOLTAGE: 12 Volts AC or 15 Volts AC Multi-Tap. We recommend using the 12VAC tap for all lights with a run length of 100 feet or less!
  • MAXIMUM LOAD: Your choice of 40, 75, 100, 200 or 300 Watts. Select Max Wattage option above when ordering.
  • when ordering.

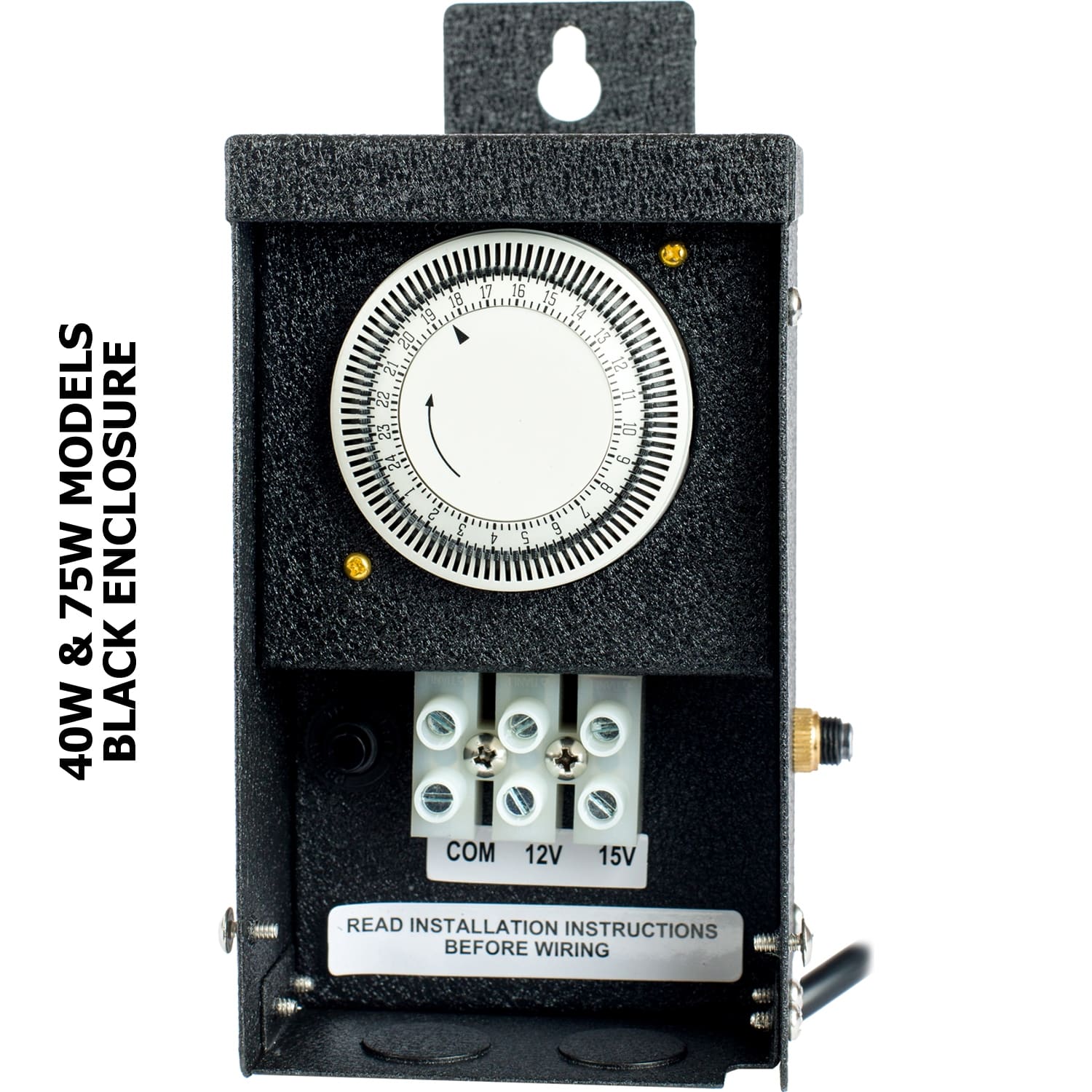

  • DIMENSIONS (40W & 75W MODELS): 8.5″ Height x 3.75″ Width x 4.4″ Depth.
  • DIMENSIONS (100W, 200W & 300W MODELS): 12.25″ Height x 4.75″ Width x 4.8″ Depth.
  • ENCLOSURE (CASING): Available in either Black Powder Coated Steel (standard) or unfinished Stainless Steel (optional). Both enclosures are NEMA 3R rated enclosure for outdoor use!
  • PLUG-IN CORD: These transformers come included with a 6 foot length plug-in cord, which can be hardwired by simply cutting off the prongs on the plug-in cord, and expose the wires.
  • CERTIFICATIONS (LISTINGS): These transformers are ETL and cETL Listed for outdoor wet location use.
  • WARRANTY: Five (5) year manufacturer’s warranty from date of delivery.



ORDERING GUIDE

ORDERING GUIDE

SPEC SHEETS

SPEC SHEETS

SPECIFICATION SHEET (40W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (40W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (75W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (75W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (100W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (100W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (200W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (200W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (300W BLACK MODEL):  CLICK TO OPEN / DOWNLOAD

SPECIFICATION SHEET (300W STAINLESS STEEL MODEL):  CLICK TO OPEN / DOWNLOAD
